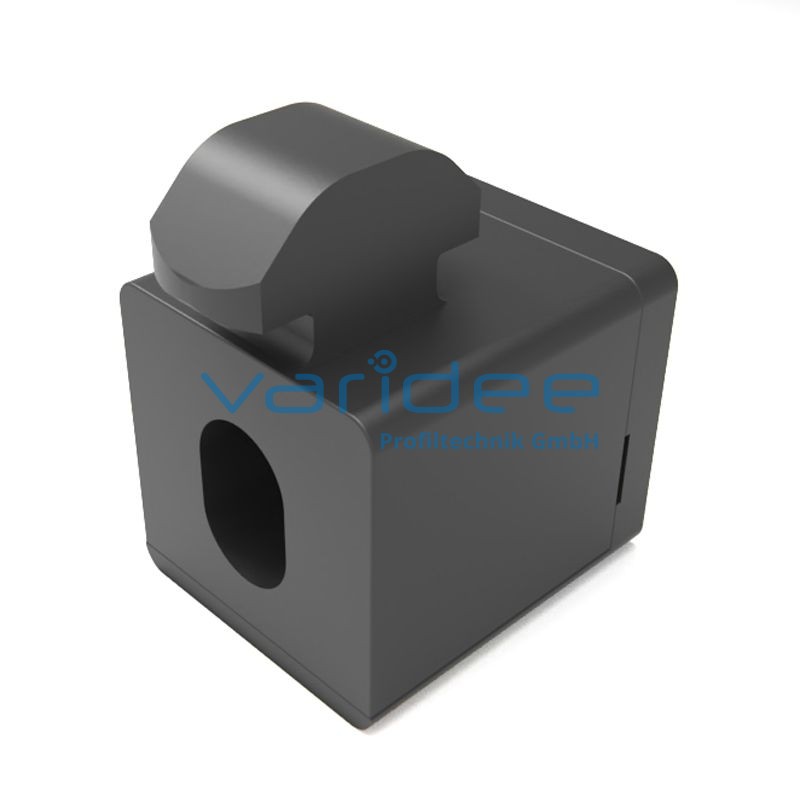

Multiblock 5 PA, black
MB5-PA-M4
Consists of:
Base body and height compensation, PA-GF, black
Square nut DIN 557-M4, St, galvanized
Load: Fmax = 100 N
m = 2.0 g
Base body and height compensation, PA-GF, black
Square nut DIN 557-M4, St, galvanized
Load: Fmax = 100 N
m = 2.0 g
Multiblocks enable the reliable and secure attachment of any surface elements to the profile groove. Multiblocks can be retrofitted at any time in constructions. The installation position can be freely selected by screwing it into the profile groove. For a larger mounting clearance provide an oblong hole and a movable fixing nut. An interchangeable height compensation and a rotatable installation position ensure variable installation dimensions.
