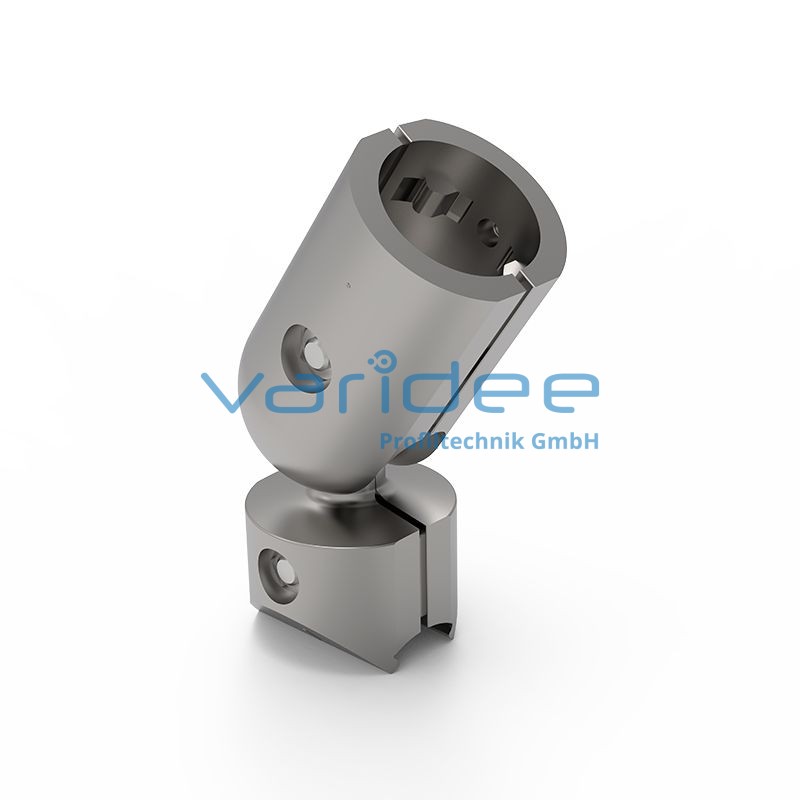

Ball Joint Fastener D30 Al
KUV-D30-AL
Consists of:
2 Connector halves ball head, GD-Al, bright
2 Connector halves ball socket, GD-Al, bright
2 Cap screws DIN 912, M6x28, St, galvanized
2 Hexagon nuts DIN 985 (self-locking), St, galvanized
m = 199.0 g
2 Connector halves ball head, GD-Al, bright
2 Connector halves ball socket, GD-Al, bright
2 Cap screws DIN 912, M6x28, St, galvanized
2 Hexagon nuts DIN 985 (self-locking), St, galvanized
m = 199.0 g
The ball joint fastener acts as a joint. The intended immersion depth of the profile tube in the fastener is 25 mm. The internal ball allows a continuous adjustment range of 180°. This allows struts to be mounted in any spatial arrangement. The assembly-ready ball joint fastener is delivered as a set and includes the necessary mounting set. This makes the fastener immediately ready for service. The tightening torque of the fastening screw is M = 10 Nm. If required the screw points can be closed with additionally orderable Cap D30 arched R15, grey.
