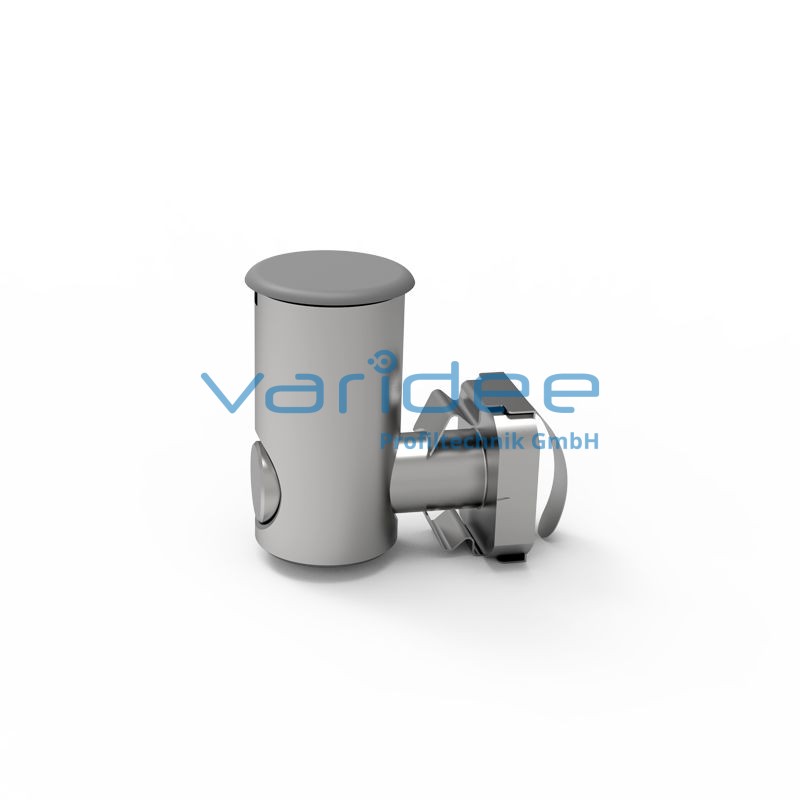

Central-fastening set 8, galvanized
ZVS-8
Consists of:
Bolt 8 with hole, St, galvanized
Clamping bolt 8, St, galvanized
Spring element, St, stainless steel
Spring element M10, St, galvanized
Cap, PA-GF, traffic grey A similar to RAL 7042
m = 42.0 g
Bolt 8 with hole, St, galvanized
Clamping bolt 8, St, galvanized
Spring element, St, stainless steel
Spring element M10, St, galvanized
Cap, PA-GF, traffic grey A similar to RAL 7042
m = 42.0 g
The central-fastening set 8, galvanized enables right-angled profile connections. A special feature of the connector is that the grooves remain free. Thus surface elements can be mounted withour any processing. The central-fastening set 8 is mainly used for assembly of protective and partition wall systems. Due to a reduced clamping force and lack of anti-twist lock, the connector is only suitable for light applications. Furthermore it is recommended to use central-fastening sets only combined with panel elements inserted in the groove. For mounting connection processing according to drawing is required.
