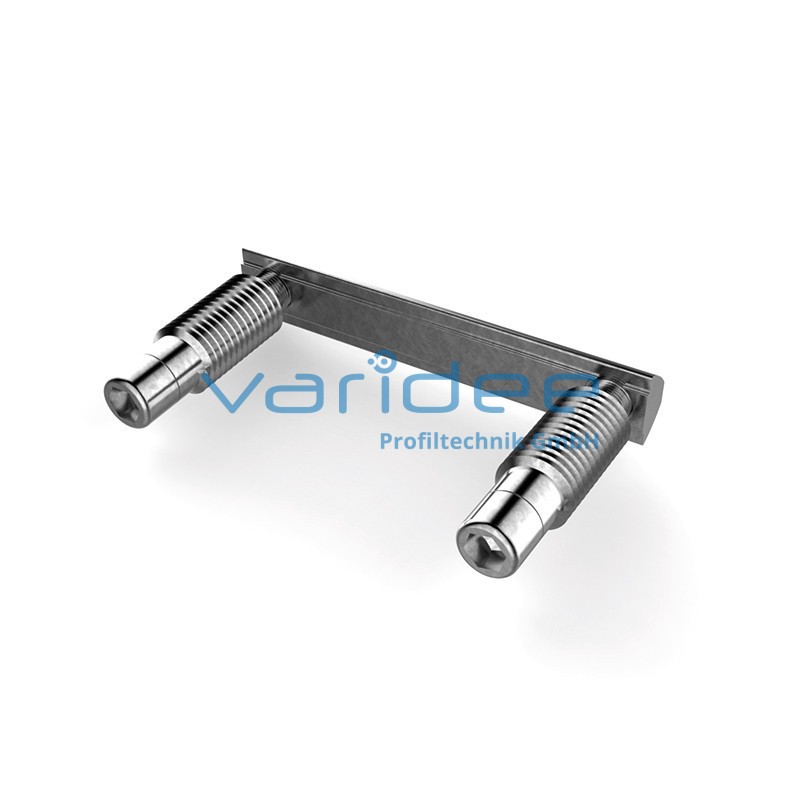

Thread form-fastening set 8 double 80, galvanized
GFV-8-D-80
s = AF 6
Consists of:
2 Sleeves 8
2 Cap screws M8x38
Double T-slot nut 8 St M8 with guiding ridge
Hole spacing: 65.4 mm
Material: St
Surface: galvanized
M = 20 Nm
m = 84.5 g
Consists of:
2 Sleeves 8
2 Cap screws M8x38
Double T-slot nut 8 St M8 with guiding ridge
Hole spacing: 65.4 mm
Material: St
Surface: galvanized
M = 20 Nm
m = 84.5 g
Friction-locked, right-angled connection with the possibility of retrofitting and adjusting profiles. To install the connector, no additional machining is required. The connector sleeve is inserted into a profile groove on the face side. The thread is self-forming an dis screwed in clockwise.
