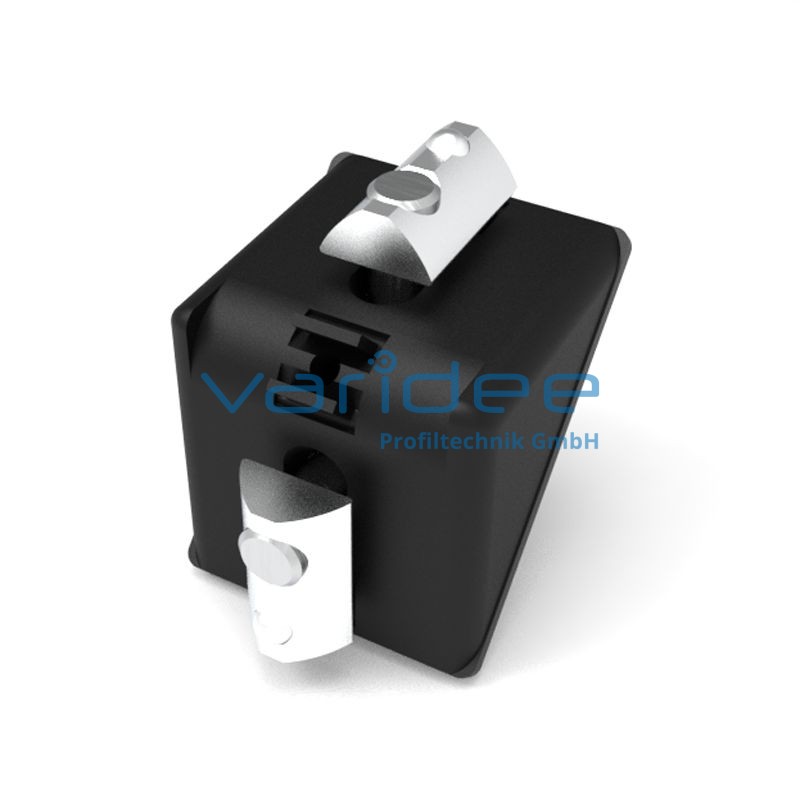

Angle bracket 8 40x40 Zn, black, set
W8-40x40-ZN-S-SZ
Consists of:
Angle bracket 8 40x40 Zn, matt painted, black similar to RAL 9005
Angle bracket cap 8 40x40, PA-GF, black
2 Button-head screws ISO 7380-M8x16, St, galvanized
2 Washers 13,5x9x1, St, galvanized
2 T-slot nuts 8 St M8, galvanized
m = 160.0 g
Angle bracket 8 40x40 Zn, matt painted, black similar to RAL 9005
Angle bracket cap 8 40x40, PA-GF, black
2 Button-head screws ISO 7380-M8x16, St, galvanized
2 Washers 13,5x9x1, St, galvanized
2 T-slot nuts 8 St M8, galvanized
m = 160.0 g
The angle bracket 8 40x40 Zn, black enables a force-locked connection without machining. The angle bracket Zn can be used as additional reinforcement of connections and as a fastening element for various attachments. The angle bracket has integrated anti-twist locks for fixing in the groove, which can be removed if necessary. The black version is visually aligned with black anodized profiles. Furthermore the matt black paint reduces reflections, especially when using camera systems. The mounting kit and an bracket angle cap,black are included.
