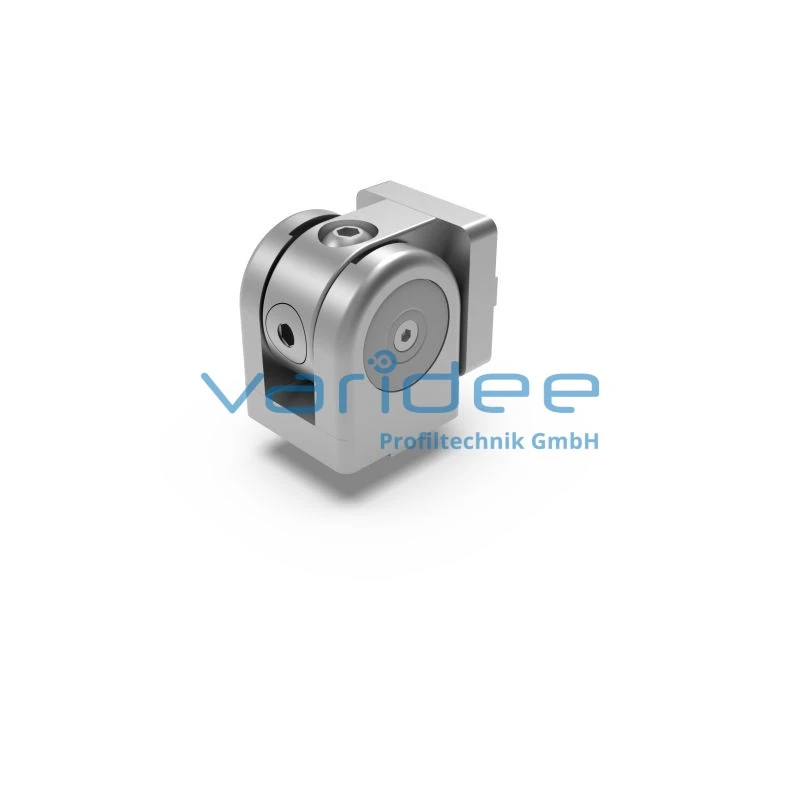

Ball-bearing hinge 8 40x40 Al
SCHWL-8-AL
Consists of:
Ball-bearing hinge 8 40x40, GD-Al, white aluminum painted
Cap, PA-GF, grey
2 Integrated fixing screws, M8x16, St, galvanized
4 Groove fixings 8, GD-Zn, galvanized
Coupling screw M8, St, galvanized
Load: F1max = 2500 N (tensile force)
F2max = 750 N (shear force)
M = 45 Nm
m = 269.0 g
Ball-bearing hinge 8 40x40, GD-Al, white aluminum painted
Cap, PA-GF, grey
2 Integrated fixing screws, M8x16, St, galvanized
4 Groove fixings 8, GD-Zn, galvanized
Coupling screw M8, St, galvanized
Load: F1max = 2500 N (tensile force)
F2max = 750 N (shear force)
M = 45 Nm
m = 269.0 g
The ball-bearing hinge 8 40x40 can be screwed to any components and enables swivel movements of up to 180°. Two integrated ball bearings ensure smooth running, a high load capacity and low-wear operation. The required fixing screws are already pre-assembled in the bearing bracket. Mmax = 20 Nm applies to the fixing screws. For fixing to the profile groove 8 separately orderable T-slot nuts 8 St M8 are recommended.
