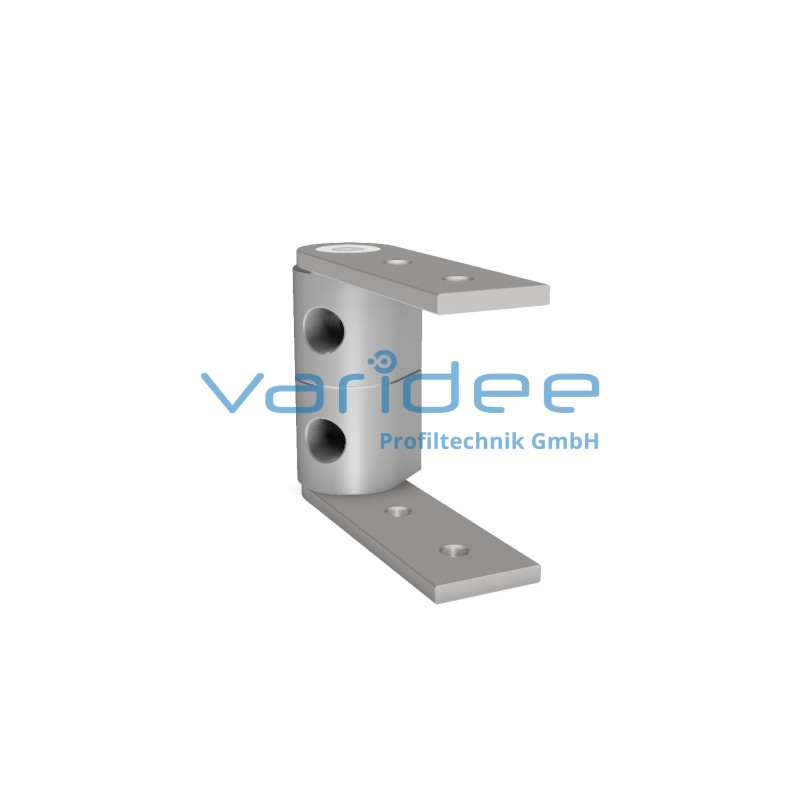

Hinge 8 80x40 - 180°
G8-80x40-180
Consists of:
Hinge 8 80x40 - 180°, GD-Al, white aluminum painted
4 Fixings, GD-Zn, galvanized
Load: Fmax = 150 N
m = 383.0 g
Hinge 8 80x40 - 180°, GD-Al, white aluminum painted
4 Fixings, GD-Zn, galvanized
Load: Fmax = 150 N
m = 383.0 g
The hinge 8 80x40-180° is suitable for assembling rotatable cantilevers that need to hold their selected position reliably and still be easy to move. For fastening to a profile groove 8, the additionally orderable Fastening set for hinge 8 80x40 - 180° is recommended. This ensures greater safety by means of a double screw connection. The groove fixings included in the scope of delivery of the hinges provide additionally protection against twisting. The hinge 8 80x40-180° is designed for a maximum load of 150N. The leverage effect must also be taken into account.
