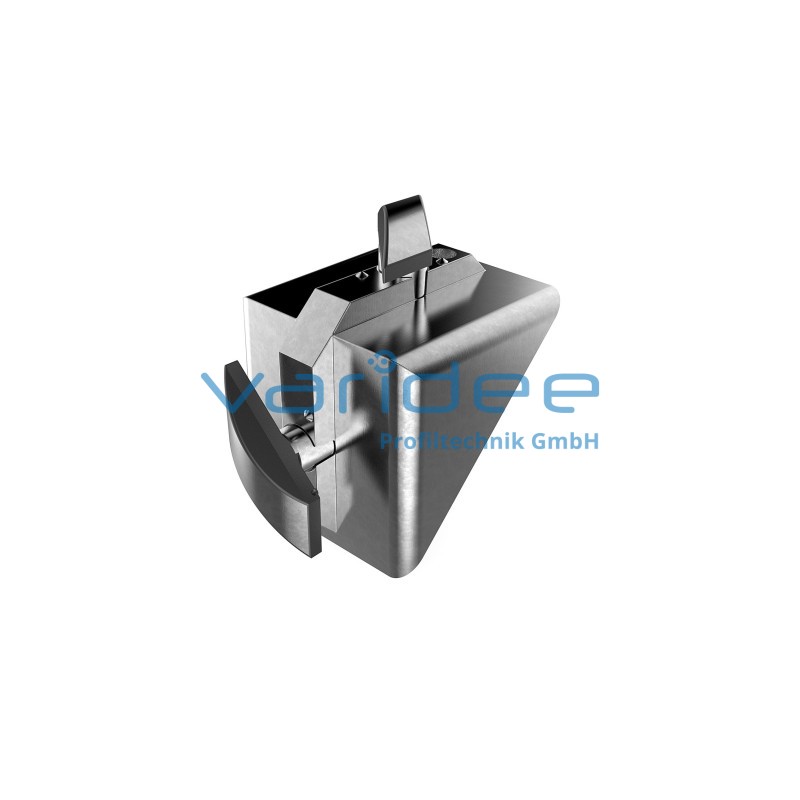

Quick - angle bracket set 8 40x40 Al, ESD
QW8-40x40-AL
Consists of:
Quick - angle bracket 8 40x40, GD-Al, white aluminum, similar to RAL 9006
2 Hammer head bolts M8x11, St, galvanized
2 Countersunk nuts M8x6, St, galvanized
M = 25 Nm
m = 85.5 g
Quick - angle bracket 8 40x40, GD-Al, white aluminum, similar to RAL 9006
2 Hammer head bolts M8x11, St, galvanized
2 Countersunk nuts M8x6, St, galvanized
M = 25 Nm
m = 85.5 g
Qick - angle bracket set 8 Al are force-locked connecting elements that can be installed without additional machining. Due to pre-assembled fastening components, the bracket can be attached to the profile groove very quickly and easily. In addition the hammer nuts break through the anodized layer during assembly and ensure a conductive connection. The tightening torque of the fixing screws is 25 Nm. Additional cover caps can be ordered to improve the appearance.
