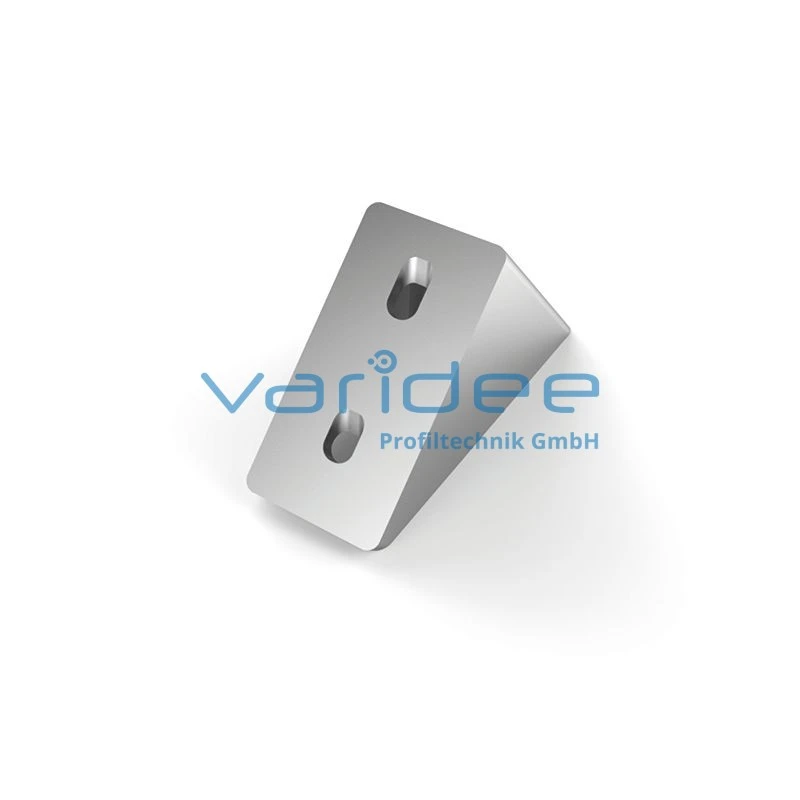

Angle fastener 8 40/80-45°, vertical
Order number: WV8-40/80-45
Material: GD-Zn
Surface: aluminium white, painted
m = 353,0 g
Zugeschnittene bzw. individuell bearbeitete Waren sind vom Umtausch und der Warenrückgabe ausgeschlossen.
The angle fastener 8 40/80-45°, vertical is suitable as a connecting element for support struts mounted at a fixed angel of 45° and for assembling complete trusses. With helf of this connector, stiffening struts made of profile 80x40 (vertically installed), can also be retrofitted to profile frames. Furthermore, there are no miter cuts necessary on the profiles. The recommended fastenting set consists of 2 half-round screws M8x20 (face side), 2 half-round screws M8x16 (slot side) and 2 T-slot nuts 8 StM8. In addition, two connection machinings per angle fastener are required on the support struts made of profile 8 80x40: threaded hole M8x18
The maximum load against displacement is: Fmax = 2000 N
Order number: WV8-40/80-45
Material: GD-Zn
Surface: aluminium white, painted
m = 353,0 g
