New

Erdungsanschluss 6

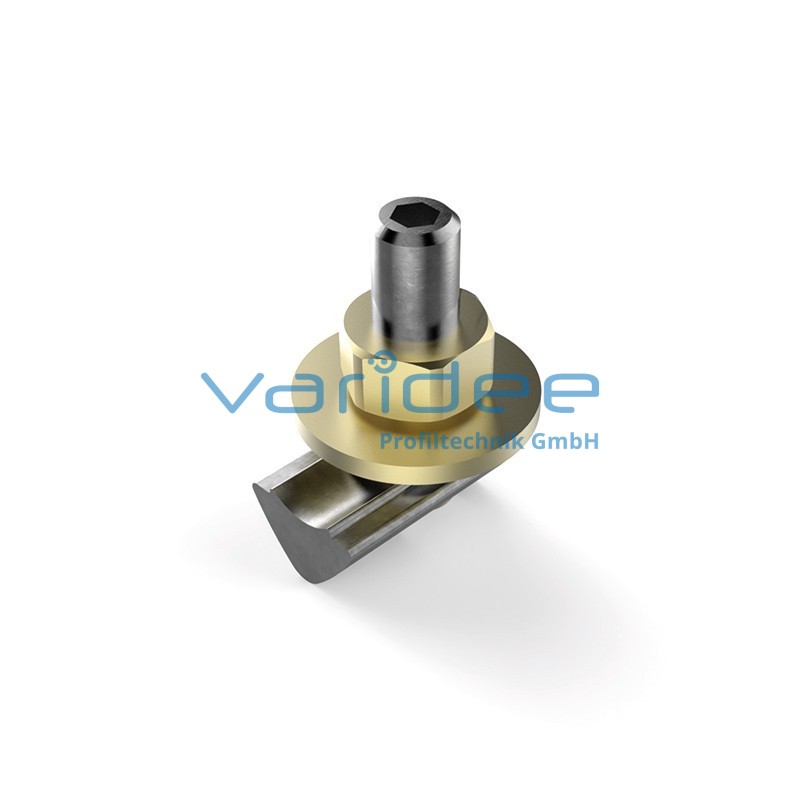

Earthing terminal 6

Order number: EA-6

Consists of:
T-slot nut 6 St M6 with guiding ridge, galvanized
Threaded pin DIN916-M6x25, St, galvanized
Hexagon nut DIN934-M6, brass
Washer DIN9021-6,4, brass
Fan disc DIN6798-A6,4, St, galvanized
m = 13.0 g

Description
Attachments

Earthing terminals are used to ground profile constructions. The profiles can thus be integrated into the protective conductor system. The contact points are created by the defined destruction of the anodized layer in the groove base and on the groove flanks. Assembly is done by screwing in the threaded pin. Important: During installation the cable lug must be located between the serrated lock washer and the brass washer.
