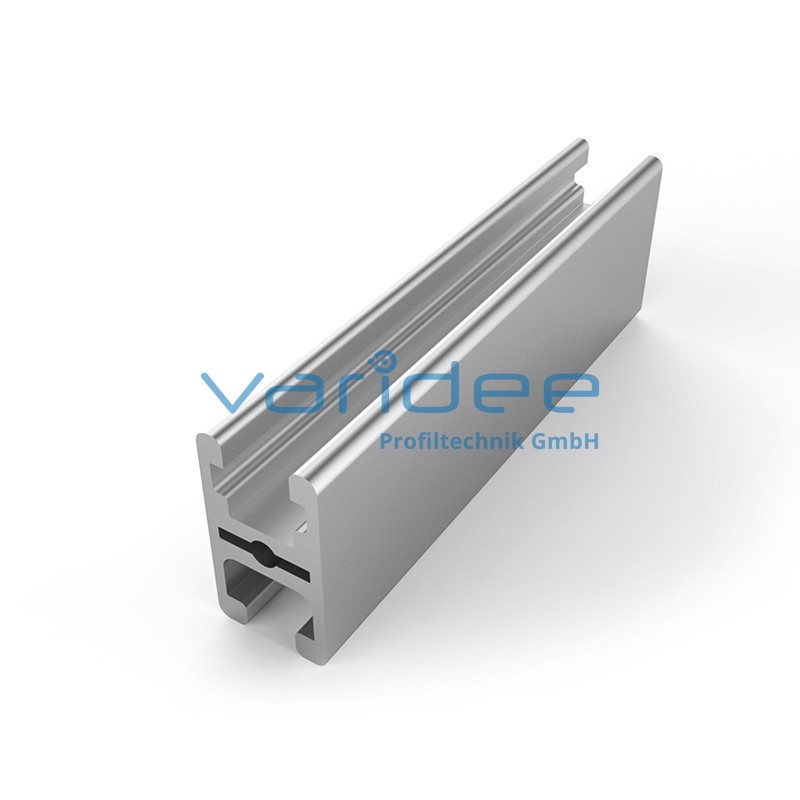

Clamp profile 8 32x18 (3 meters)
KP8-32x18-S3
Material: Aluminum, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 2500 N
A = 2.5 cm2, Wx = 1.12 cm3, Wy = 1.24 cm3, Ix = 1.88 cm4, Iy = 1.12 cm4, It = 0.23 cm4
Length: 3000 mm
m = 0.68 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 2500 N
A = 2.5 cm2, Wx = 1.12 cm3, Wy = 1.24 cm3, Ix = 1.88 cm4, Iy = 1.12 cm4, It = 0.23 cm4
Length: 3000 mm
m = 0.68 kg/m
The clamp profile 8 32x18 is especially well-suited for the construction of light protection systems and sliding doors. The profile can be combined with add-on parts such as clamping springs, special fastening-sets, as well as sliding-door guide sets and caps which can be ordered additionally.
