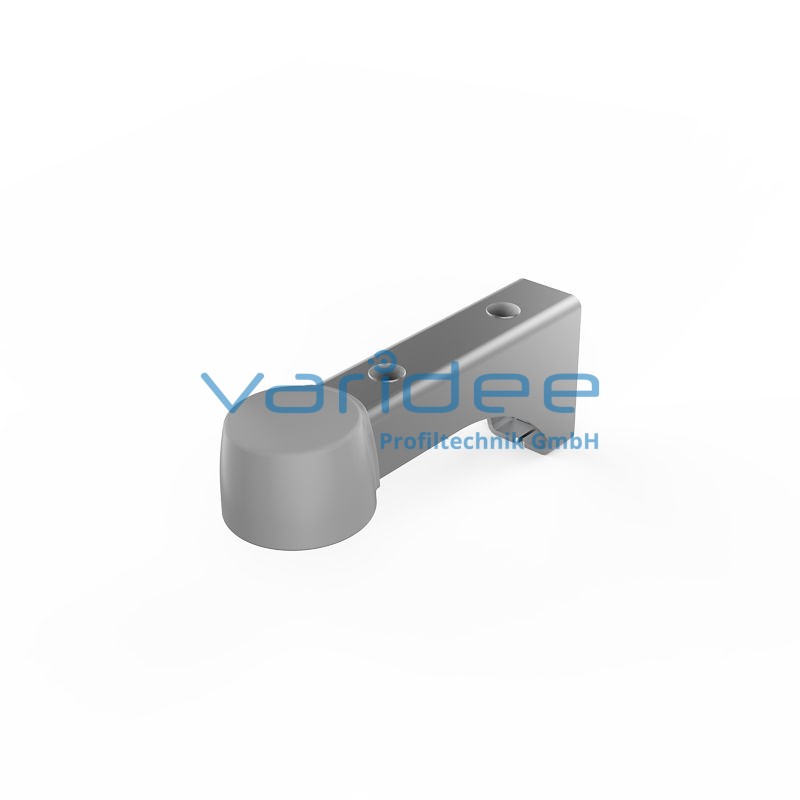

Castor support 8 80x40
RSO8-80x40
Consists of:
Roller bracket St, aluminum-colored powder coated
Protective cap, TPE, grey
2 Button-head screws M8x16, St, galvanized
Countersunk screw M10x25, St, galvanized
2 Hole caps, PA, grey
m = 751.0 g
Roller bracket St, aluminum-colored powder coated
Protective cap, TPE, grey
2 Button-head screws M8x16, St, galvanized
Countersunk screw M10x25, St, galvanized
2 Hole caps, PA, grey
m = 751.0 g
The castor support 8 80x40 allows D100 and D125 swivel castors to be securely attached to series 8 profiles. The castor support reduces the construction height and increases the safety against tilting due to a low center of gravity. The component is ideally suited for frontal mounting on a profile 8 80x40 using two M8 threads in the core bores. The castor support is shaped in such a way that the full swivel range of the swivel castors is guaranteed. Furthermore, an elastomer cap protects against damage and injury. Suitable fixing screws for series 8 are included.
