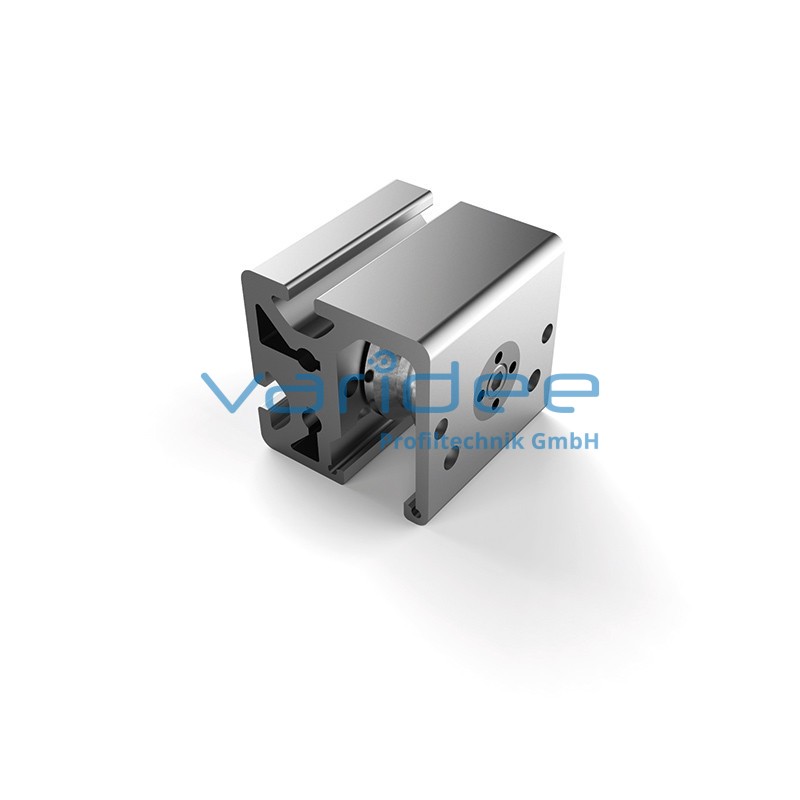

Bearing unit 8 D14 e
LE8-D14-E
C = 7800 N
C0 = 4400 N
Consists of:
Bearing unit 8 D14 e, Al, anodized
Bolt 8 D14 e, St, galvanized
Roller D14, St, bright
M = 20 Nm
m = 380.0 g
C0 = 4400 N
Consists of:
Bearing unit 8 D14 e, Al, anodized
Bolt 8 D14 e, St, galvanized
Roller D14, St, bright
M = 20 Nm
m = 380.0 g
Bearing units are used to build linear slides. They are used exclusively in pairs; excentric/centric. Excentric bearing units can be adjusted backlash-free at a later time. Bearing units must always be provided with wiper and lubricating systems to avoid premature wear. For high loads, it is recommended to pin the bearing units by a cylinder pin m6x30. Button-head screws M8x16, galvanized and washers ISO 7089 - 8, galvanized are required for fastening to the profile groove 8.
