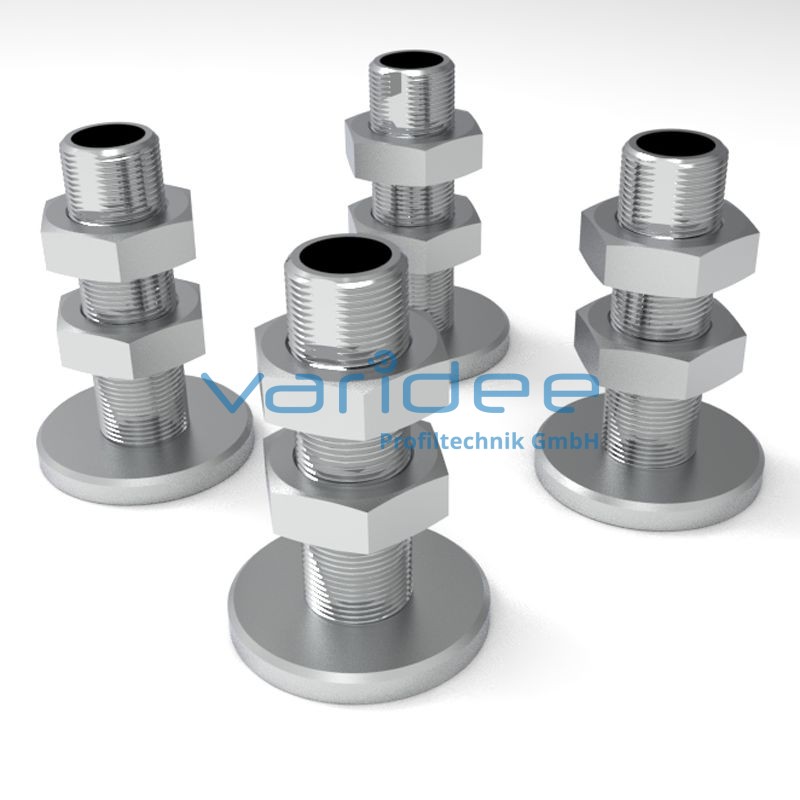

Levelling Feet D80, M33x120, galvanized
NF-D80-120
Consists of:
4 Threaded sleeves M33x2, L = 120 mm
8 Hexagon nuts M33x2
4 Plates
Material: St
Surface: galvanized
m = 3.75 kg
4 Threaded sleeves M33x2, L = 120 mm
8 Hexagon nuts M33x2
4 Plates
Material: St
Surface: galvanized
m = 3.75 kg
Leveling feet D80-M33, galvanized are used to align and anchor floor plates or stable base plates. Leveling feet allow to compensate for uneven floors as well as for differences in floor level. To adjust the height, the lower hexagonal nut is adjusted. It is necessary to hold the sleeve against turning. The tilt compensation is +/- 2.5 degrees. To fix the feet, commercially available floor mounting kits can be inserted through the holes in the sleeves. These are not included and can be ordered separately. The leveling feet D80 are optionally offered with 80.0 mm and 120.0 mm sleeves.
