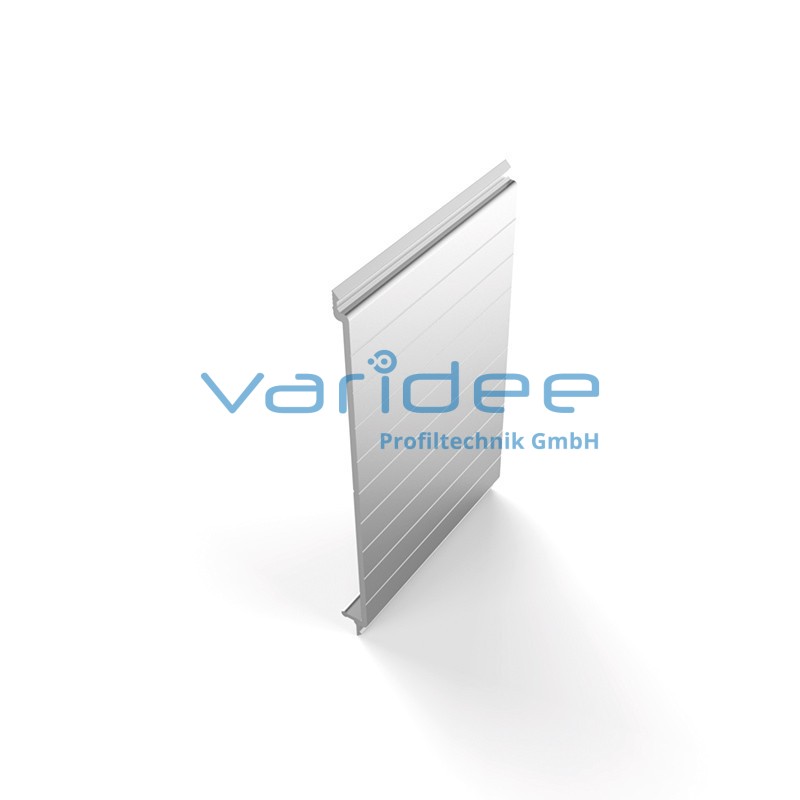

Wall profile 160 (3 meters)
WP-160-S3
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
A = 4.04 cm2
Length: 3000 mm
m = 1.09 kg/m
Surface: anodized, A6, C0
Color: natural color
A = 4.04 cm2
Length: 3000 mm
m = 1.09 kg/m
With wall profiles modular ducts can be produces. Therefore wall profiles are the side walls of the duct system. The profiles are mounted by swiveling the wall profiles into the support profiles. In addition the assembled ducts can be secured by self tapping screws St 4,2x9,5. The use of self tapping screws ensures an electrically conductive connection.
