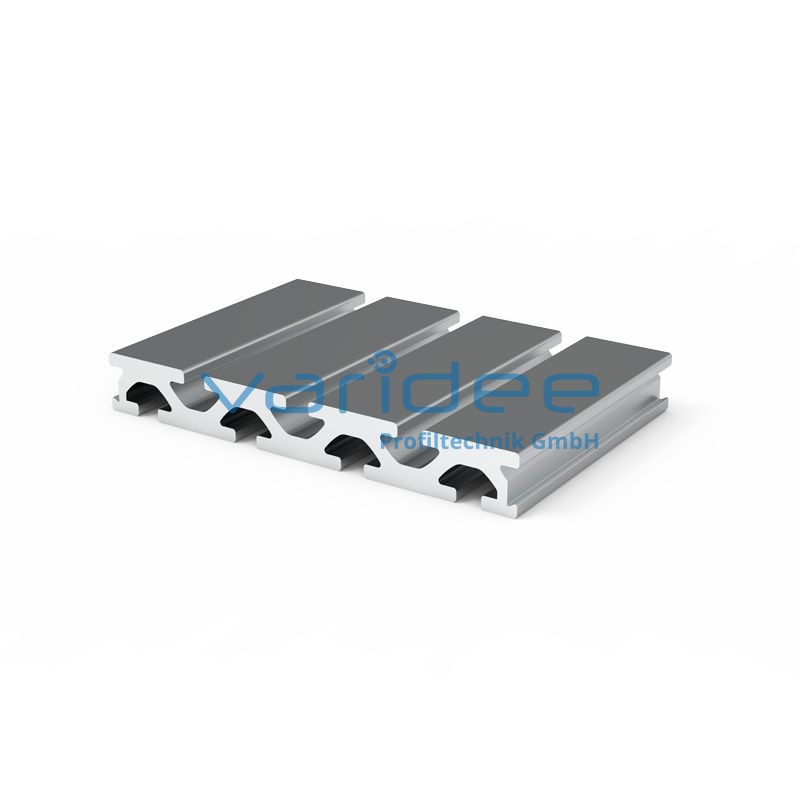

Bed plate profile 8 152x20 (3 meters)
PP8-152x20-S3
Material: Al
Surface: anodized
max. tensile load groove flanks: 5000 N
A = 18.39 cm2, Wx = 7.2 cm3, Wy = 46.12 cm3, Ix = 7.39 cm4, Iy = 350.5 cm4, It = 2.69 cm4
Length: 3000 mm
m = 14.973 kg
Surface: anodized
max. tensile load groove flanks: 5000 N
A = 18.39 cm2, Wx = 7.2 cm3, Wy = 46.12 cm3, Ix = 7.39 cm4, Iy = 350.5 cm4, It = 2.69 cm4
Length: 3000 mm
m = 14.973 kg
The panel profile 8 152x20 can be used to build continuous grooved panels. The profile grooves 8 are arranged in a grid dimension of 40 mm. The panel profiles can be mounted directly onto a wide variety of substructures or profile frames. Button-head screws M8x16 with flange, galvanized and T-slot nut 8 St M8, galvanized are recommended for fastening. The panel profile 8 152x20 can be combined with the Bed plate connection profile 8 55x20.
