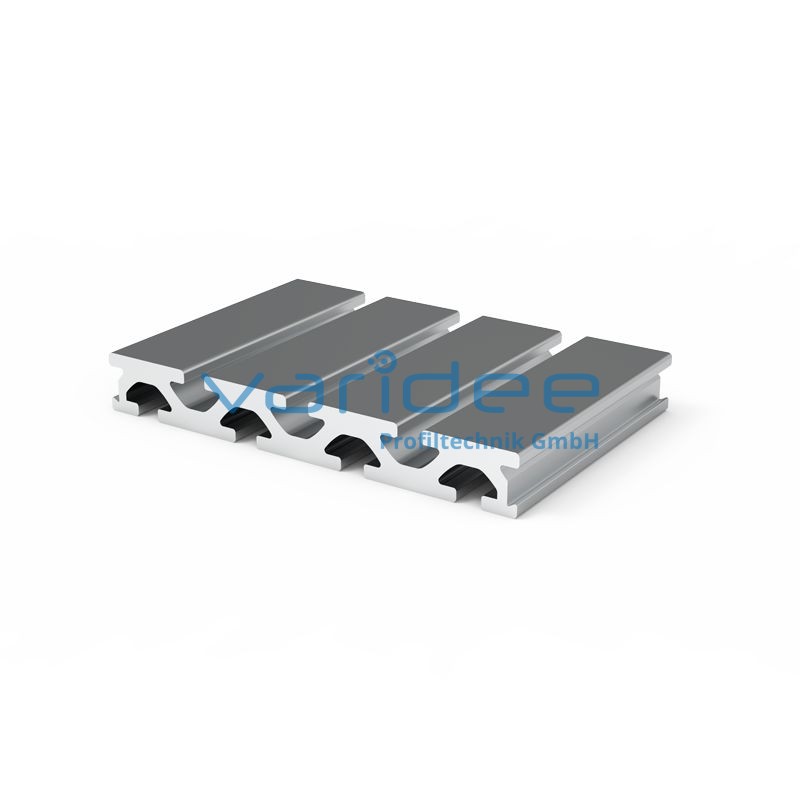

Bed plate profile 8 152x20 (cut)

Order number: PP8-152x20-Z

Saw cut: Type B
Cut max.: 6.000 mm

Material: Al, anodized

A = 18,39 cm2, m= 4,991 kg/m, Wx = 7,2 cm3, Wy = 46,12 cm3, Ix = 7,39 cm4, Iy = 350,5 cm4, It = 2,69 cm4


Zugeschnittene bzw. individuell bearbeitete Waren sind vom Umtausch und der Warenrückgabe ausgeschlossen.



Download PDF

The panel profile 8 152x20 can be used to build continuous grooved panels. The profile grooves 8 are arranged in a grid dimension of 40 mm. The panel profiles can be mounted directly onto a wide variety of substructures or profile frames. Button-head screws M8x16 with flange, galvanised and T-slot nuts 8 St M8, galvanized are recommended for fastening. The panel profile 8 152x20 can be combined with the bed plate connection profile 8 55x20.
