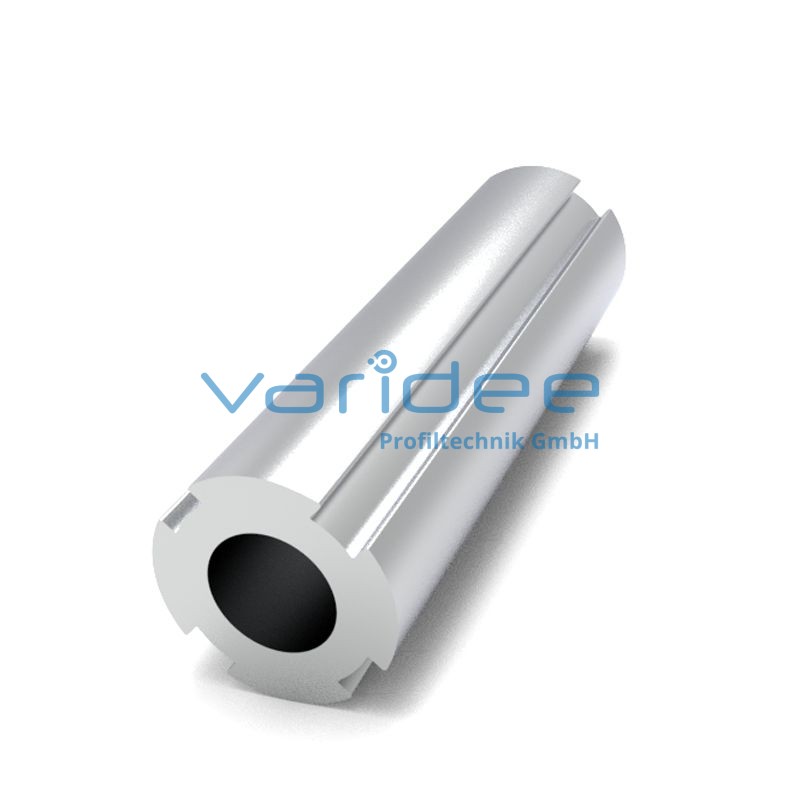

Profiletube D30 Al heavy (cut)
PR-D30-AL-S-Z
Material: Al
Surface: anodized
Color: natural color
A = 4.45 cm2, Wx = 2.03 cm3, Wy = 2.03 cm3, Ix = 3.05 cm4, Iy = 3.05 cm4, It = 5 cm4
Cut max.: 6000 mm
Saw Cut Type B
m = 1.20 kg/m
Surface: anodized
Color: natural color
A = 4.45 cm2, Wx = 2.03 cm3, Wy = 2.03 cm3, Ix = 3.05 cm4, Iy = 3.05 cm4, It = 5 cm4
Cut max.: 6000 mm
Saw Cut Type B
m = 1.20 kg/m
The profile tube D30 Al heavy is the suitable profile for heavy-duty applications form the serien D30. The special geometry of the profile tube with four undercuts enables the D30 connection technology to be connected. The connectors can be mounted in all four directions and moved along the longitudinal grooves at any time. The form locking fasters ensure a secure and permanent hold. The surface of the profile tubes D30 is natural color anodized and protects against scratches. On request, the profile tubes can be cut to the required length.
