Rohr D30 Al (3 Meter)
  • Rohr D30 Al (3 Meter)
  • Rohr D30 Al (3 Meter)

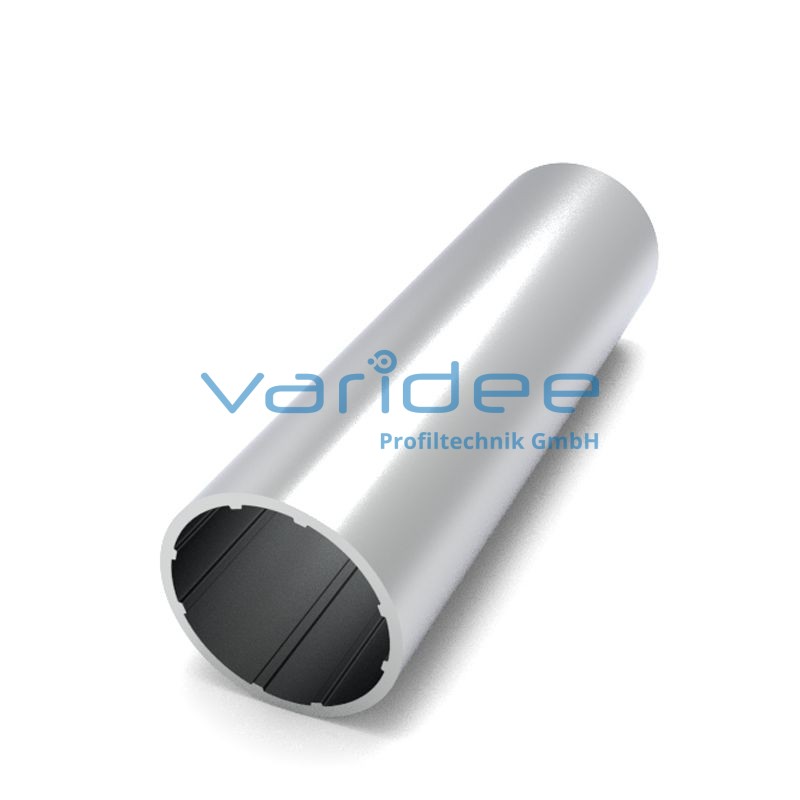

Tube D30 Al (3 meters)

R-D30-AL-S3
A = 1.27 cm2, Wx = 0.86 cm3, Wy = 0.86 cm3, Ix = 1.3 cm4, Iy = 1.3 cm4, It = 2.44 cm4
Length: 3000 mm
m = 0.34 kg/m

The tube D30 Al is the suitable series D30 profile for light applications. Fasteners are mounted on the front side and ensures a secure hold. The surface of the profile tubes D30 is natural color anodized and protects against scratches. On request, the profile tubes can be cut to the required length.
