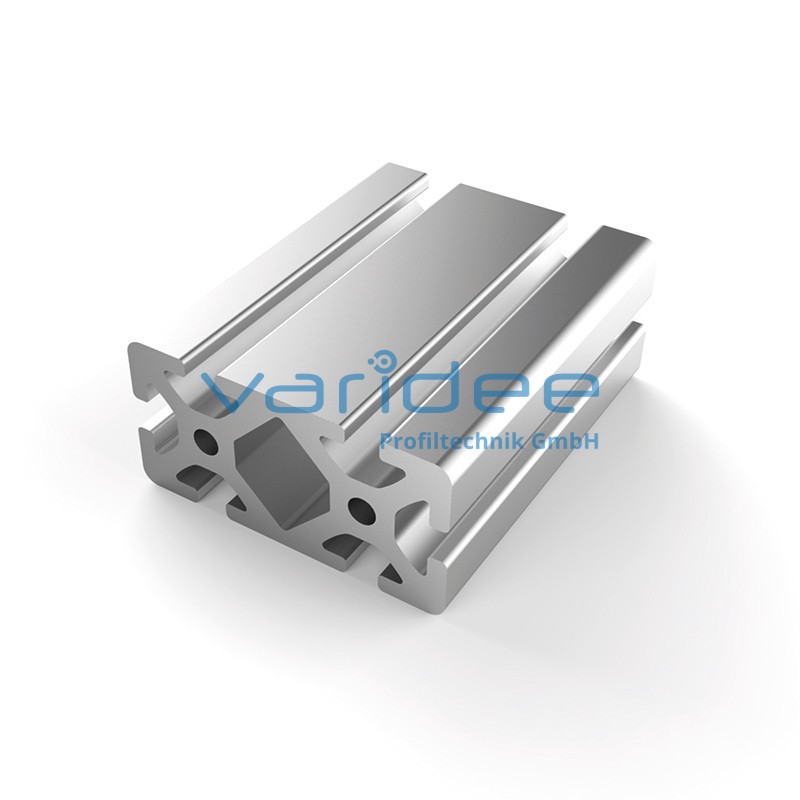

Profile 8 80x40 heavy (cut)
P8-80x40-S-Z
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 5000 N
A = 16.66 cm2, Wx = 13.46 cm3, Wy = 25.31 cm3, Ix = 26.89 cm4, Iy = 101.21 cm4, It = 20.84 cm4
Cut max.: 6000 mm
Saw Cut Type B
m = 4.499 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 5000 N
A = 16.66 cm2, Wx = 13.46 cm3, Wy = 25.31 cm3, Ix = 26.89 cm4, Iy = 101.21 cm4, It = 20.84 cm4
Cut max.: 6000 mm
Saw Cut Type B
m = 4.499 kg/m
Series 8 is suitable for all types of constructions and applications. Different profile types and sizes help to optimally manage the use of materials. The T-slots are designed for screws sized M3 to M8. Also for series 8 the focus is on functionality of modular design principle.
