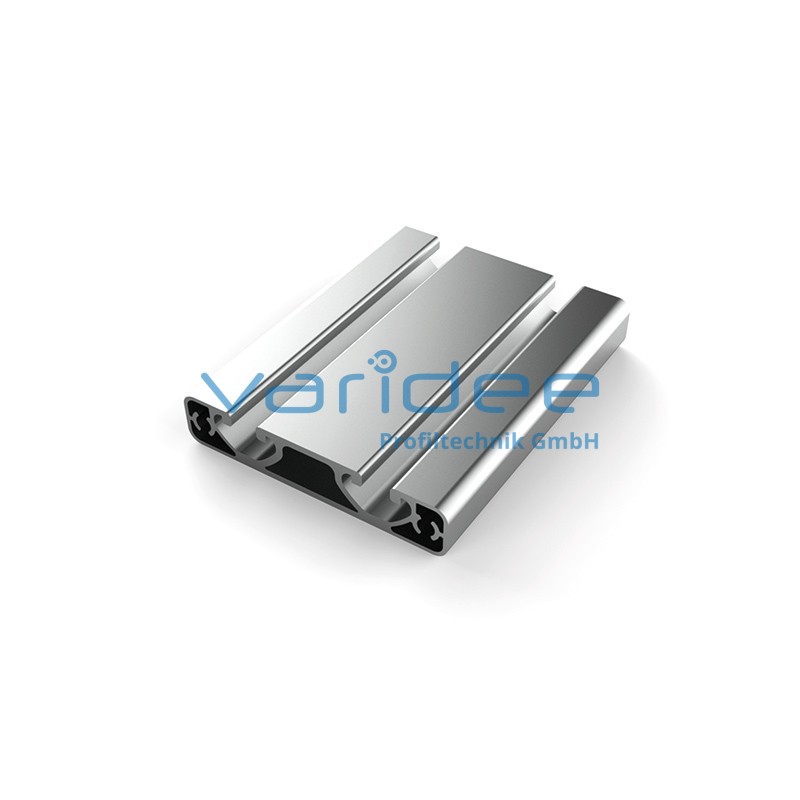

Profile 8 80x16 E (cut)
P8-80x16-E-Z
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 1750 N
A = 4.98 cm2, Wx = 1.89 cm3, Wy = 7.83 cm3, Ix = 1.57 cm4, Iy = 31.32 cm4, It = 1.62 cm4
Cut max.: 3000 mm
Saw Cut Type B
m = 1.31 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 1750 N
A = 4.98 cm2, Wx = 1.89 cm3, Wy = 7.83 cm3, Ix = 1.57 cm4, Iy = 31.32 cm4, It = 1.62 cm4
Cut max.: 3000 mm
Saw Cut Type B
m = 1.31 kg/m
Series 8 is suitable for all types of constructions and applications. Different profile types and sizes help to optimally manage the use of materials. The T-slots are designed for screws sized M3 to M8. Also for series 8 the focus is on functionality of modular design principle.
