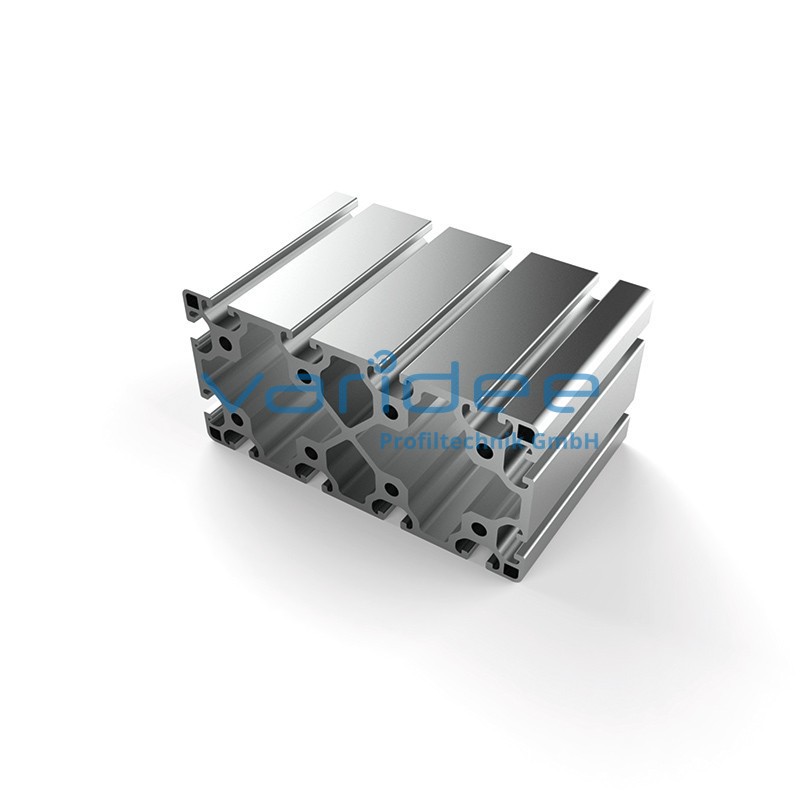

Profile 8 160x80 light (cut)
P8-160x80-L-Z
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 2500 N
A = 37.8 cm2, Wx = 66.77 cm3, Wy = 113.48 cm3, Ix = 267.07 cm4, Iy = 907.88 cm4, It = 261.72 cm4
Cut max.: 6000 mm
Saw Cut Type D
m = 10.21 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 2500 N
A = 37.8 cm2, Wx = 66.77 cm3, Wy = 113.48 cm3, Ix = 267.07 cm4, Iy = 907.88 cm4, It = 261.72 cm4
Cut max.: 6000 mm
Saw Cut Type D
m = 10.21 kg/m
Series 8 is suitable for all types of constructions and applications. Different profile types and sizes help to optimally manage the use of materials. The T-slots are designed for screws sized M3 to M8. Also for series 8 the focus is on functionality of modular design principle.
