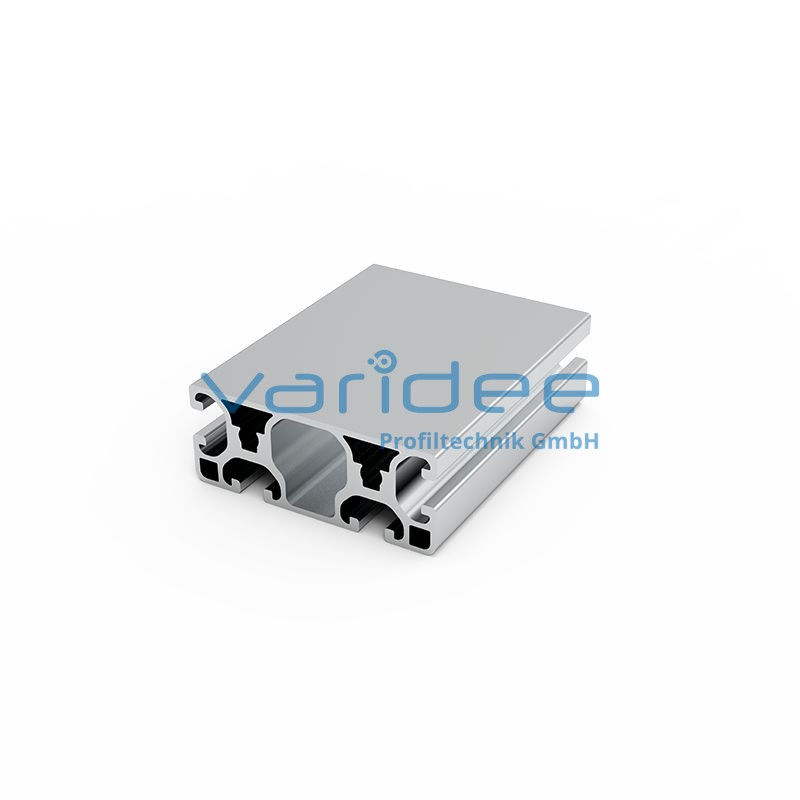

Profile 8 80x32 light (6 meters)
P8-80x32-L-S6
Material: Aluminum, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 2500 N
A = 8.63 cm2, Wx = 5.9 cm3, Wy = 13.29 cm3, Ix = 9.44 cm4, Iy = 53.14 cm4, It = 8.59 cm4
Length: 6000 mm
m = 2.33 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 2500 N
A = 8.63 cm2, Wx = 5.9 cm3, Wy = 13.29 cm3, Ix = 9.44 cm4, Iy = 53.14 cm4, It = 8.59 cm4
Length: 6000 mm
m = 2.33 kg/m
Series 8 is suitable for all types of constructions and applications. Different profile types and sizes help to optimally manage the use of materials. The T-slots are designed for screws sized M3 to M8. Also for series 8 the focus is on functionality of modular design principle.
