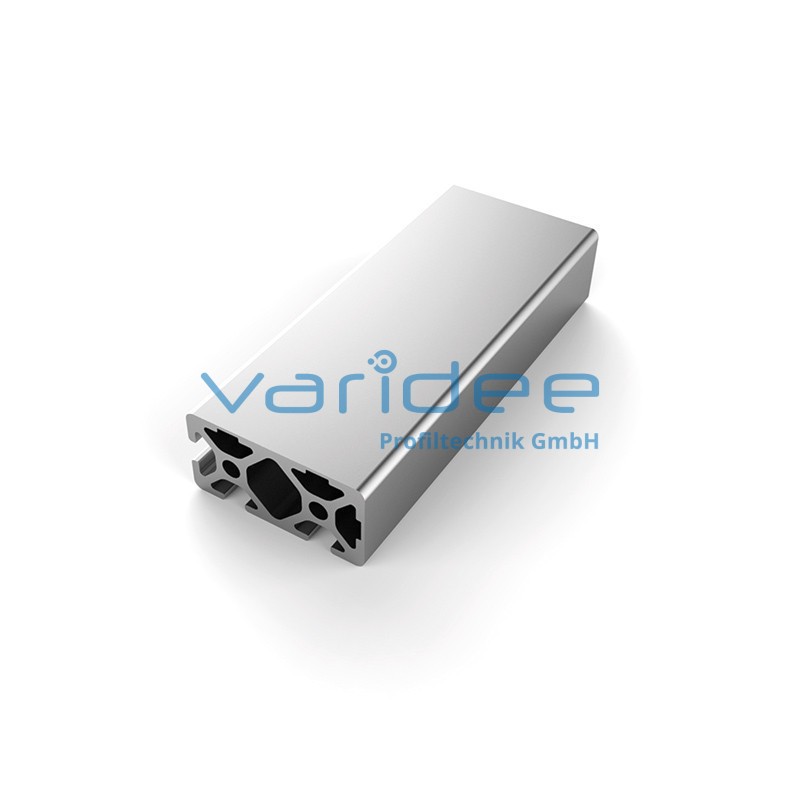

Profile 5 40x20-3N90 (3 meters)
P5-40x20-3N90-S3
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 500 N
A = 3.42 cm2, Wx = 1.44 cm3, Wy = 2.66 cm3, Ix = 1.48 cm4, Iy = 5.37 cm4, It = 1.64 cm4
Length: 3000 mm
m = 0.92 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 500 N
A = 3.42 cm2, Wx = 1.44 cm3, Wy = 2.66 cm3, Ix = 1.48 cm4, Iy = 5.37 cm4, It = 1.64 cm4
Length: 3000 mm
m = 0.92 kg/m
The small structure of profile 5 makes them especially suitable for smaller and weight-optimized applications. The T-slots are designed for screws sized M3 to M5. Also for series 5 the focus is on functionality of modular design principle.
