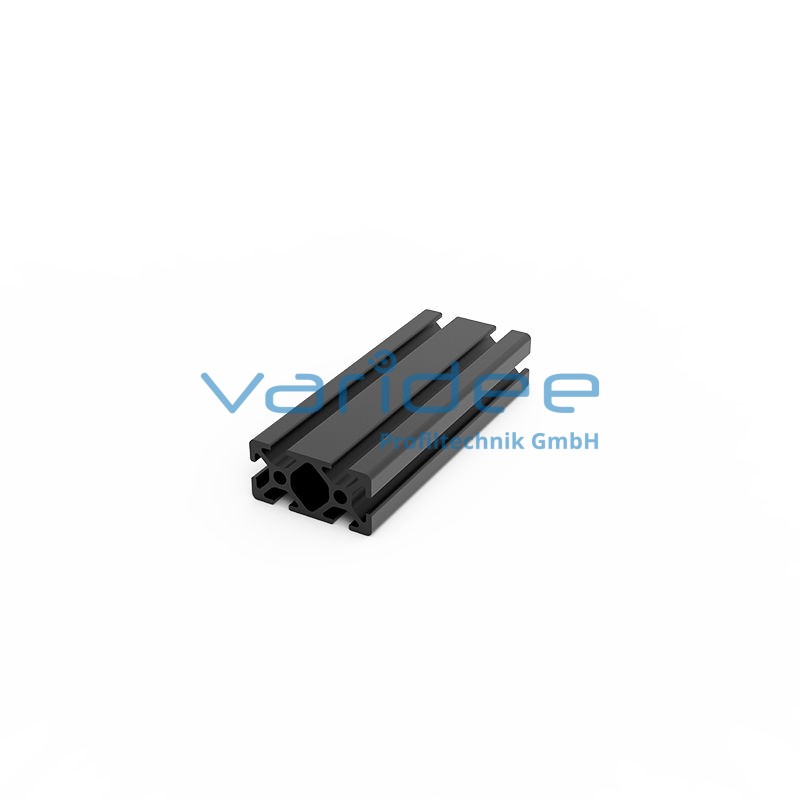

Profile 5 40x20, black (3 meters)
P5-40x20-SCH-S3
Material: Aluminum, EN AW 6063 T66
Surface: Anodizing: A6, C35 - silk matt
Color: black
max. tensile load groove flanks: 500 N
A = 3.29 cm2, Wx = 1.4 cm3, Wy = 2.56 cm3, Ix = 1.4 cm4, Iy = 5.12 cm4, It = 0.62 cm4
Length: 3000 mm
m = 0.89
Surface: Anodizing: A6, C35 - silk matt
Color: black
max. tensile load groove flanks: 500 N
A = 3.29 cm2, Wx = 1.4 cm3, Wy = 2.56 cm3, Ix = 1.4 cm4, Iy = 5.12 cm4, It = 0.62 cm4
Length: 3000 mm
m = 0.89
Black anodized profiles impress with their special appearance. The surface is pickled and black (satin matt) anodized (E6, C35). This makes the profiles scratch-resistant and corrosion-protected. The hard anodized coating also ensures a particularly low-burr saw cut. Due to the small design of Profile 5, they are particularly suitable for small and weight-optimized applications. The grooves and core holes are designed for screws of size M3 to M5. Series 5 also focuses on the functionality of the modular principle.
