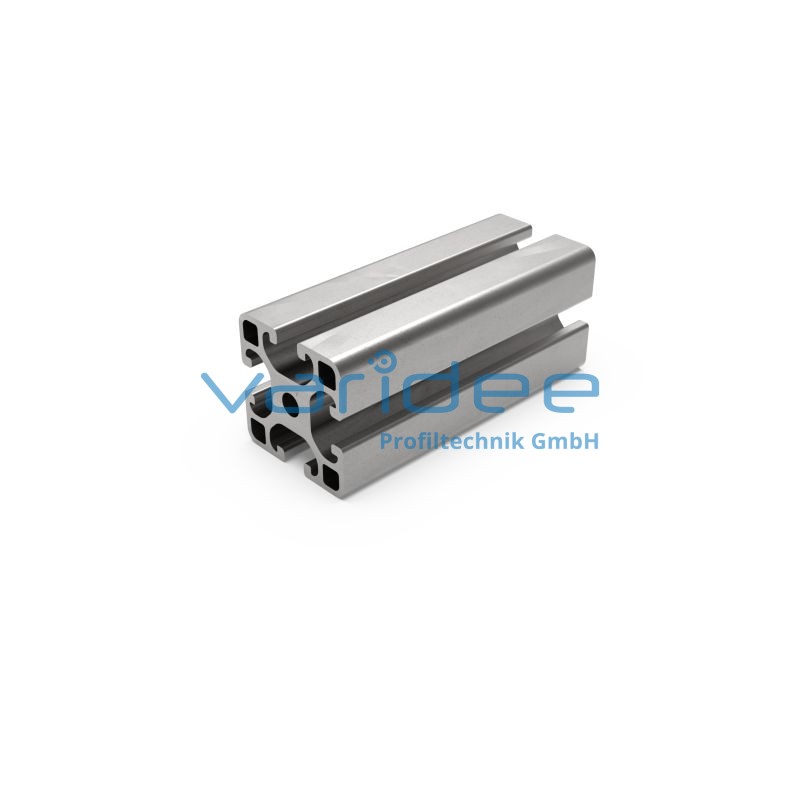

Profile 12 60x60 light (3 meters)
P12-60x60-L-S3
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 5000 N
A = 14.5 cm2, Wx = 15.36 cm3, Wy = 15.36 cm3, Ix = 46.02 cm4, Iy = 46.02 cm4, It = 7.05 cm4
Length: 3000 mm
m = 3.91 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 5000 N
A = 14.5 cm2, Wx = 15.36 cm3, Wy = 15.36 cm3, Ix = 46.02 cm4, Iy = 46.02 cm4, It = 7.05 cm4
Length: 3000 mm
m = 3.91 kg/m
Series 12 is particularly suitable for robust and highly stressed frame constructions. In the light version, the permissible tensile force on the groove flanks is 5000 N. The grooves are designed for screws of maximum size M12.
