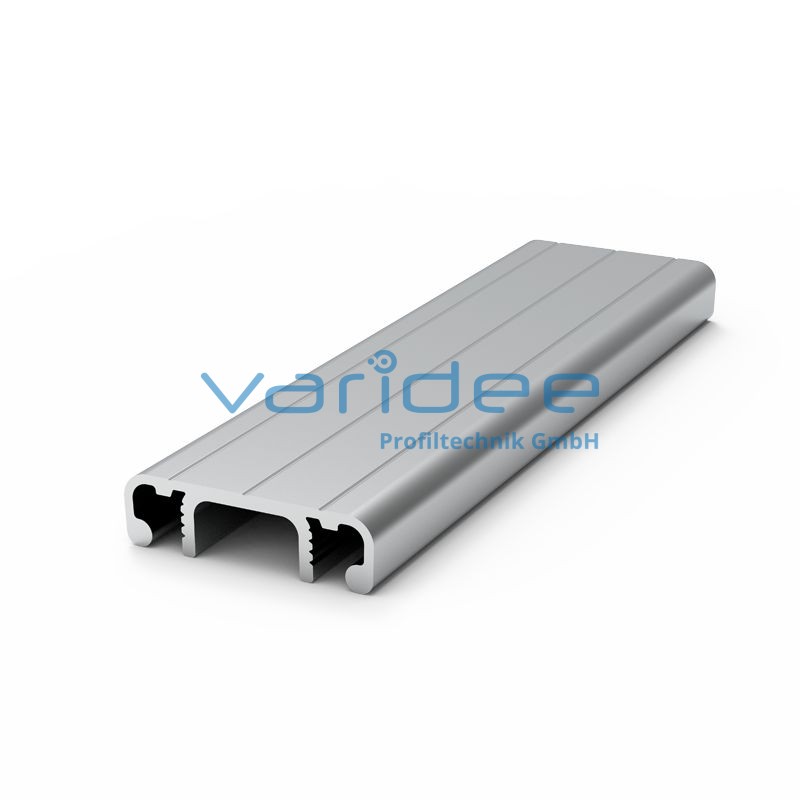

Lid profile D30 E (cut)
DP-D30-E-Z
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
A = 0.85 cm2
Cut max.: 3000 mm
Saw Cut Type B
m = 0.23 kg/m
Surface: anodized, A6, C0
Color: natural color
A = 0.85 cm2
Cut max.: 3000 mm
Saw Cut Type B
m = 0.23 kg/m
Lid profiles of variant E are used to close conduit profiles of design E or SE. The lid profiles snap into the trunking profile and can be opened at any time using a screwdriver. Additional tapping screws can be inserted in the scribed line to secure lid profiles. The use of these locking screws also creates a conductive connection.
