New

Magnetverschluss 5 PA

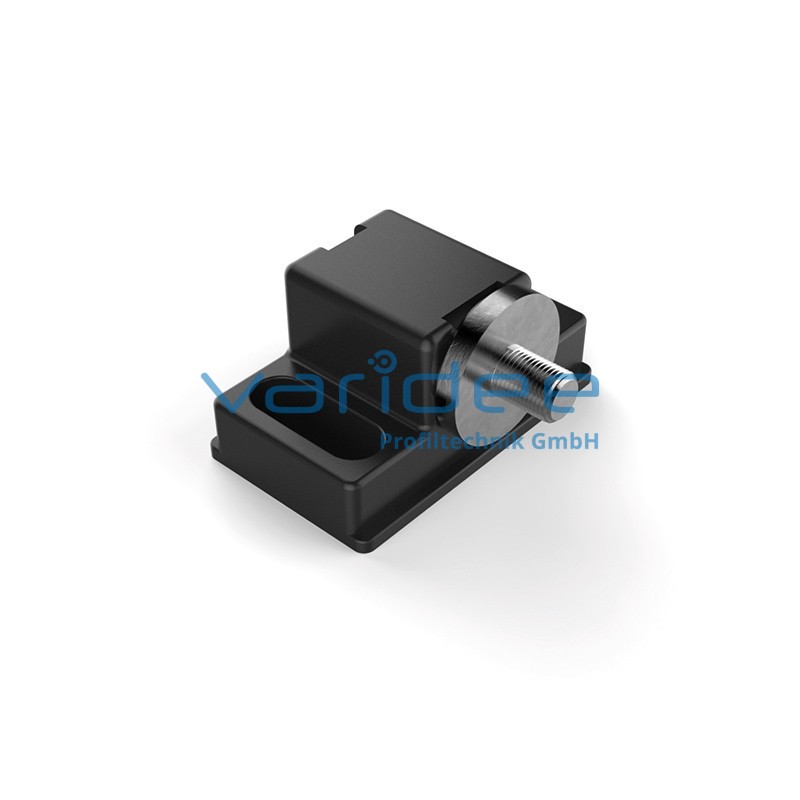

Magnetic catch 5 PA

Order number: MV5-PA

Consists of:
Housing, PA-GF, black
Pan head screw DIN 921-M4x5, St, galvanized as retaining plate
Load: Holding power F = 10 N
m = 9.0 g

Description
Attachments

Magnetic catches are preferably suitable for locking swing and sliding doors. The catches can be adapted to different thicknesses of panel elements via slotted holes.

Download Product PDF

Download "MV5-PA.stp" (304.27KB)
