New

Kugelschnäpper 8 PA

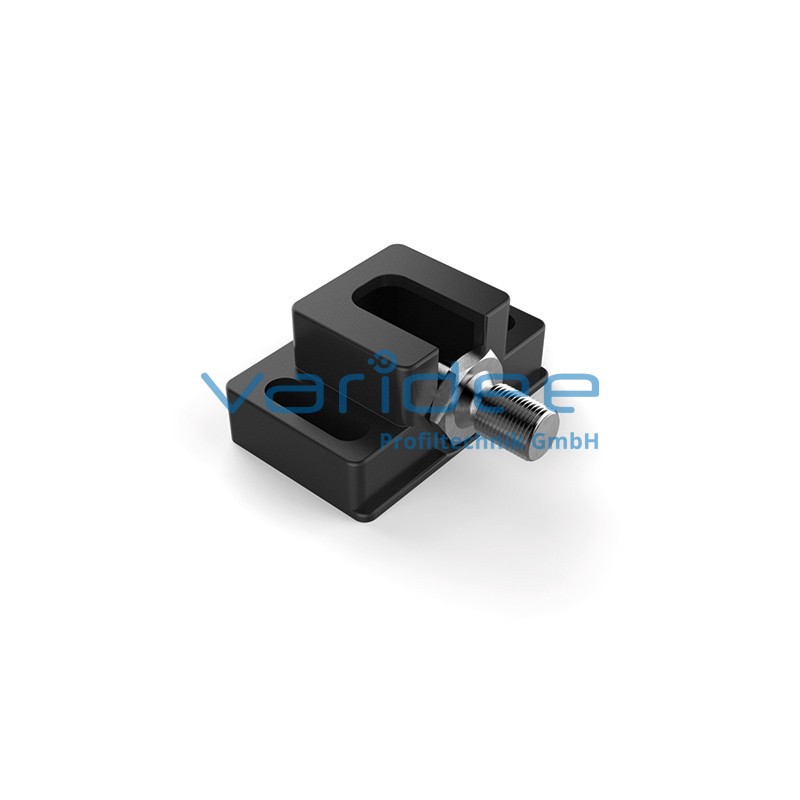

Ball latch 8 PA

Order number: KSCH8-PA

Consists of:
Housing, PA-GF, black
Ball bolt, St, galvanized
Load: Holding power F = 75 N
m = 24.0 g

Description
Attachments

Ball latches are preferably suitable for locking swing and sliding doors. The slotted holes allow an easy installation. Additionally orderable screws and T-slot nuts of size M6 are required for fastening.

Download Product PDF

Download "KSCH8-PA.stp" (356.05KB)
