- New

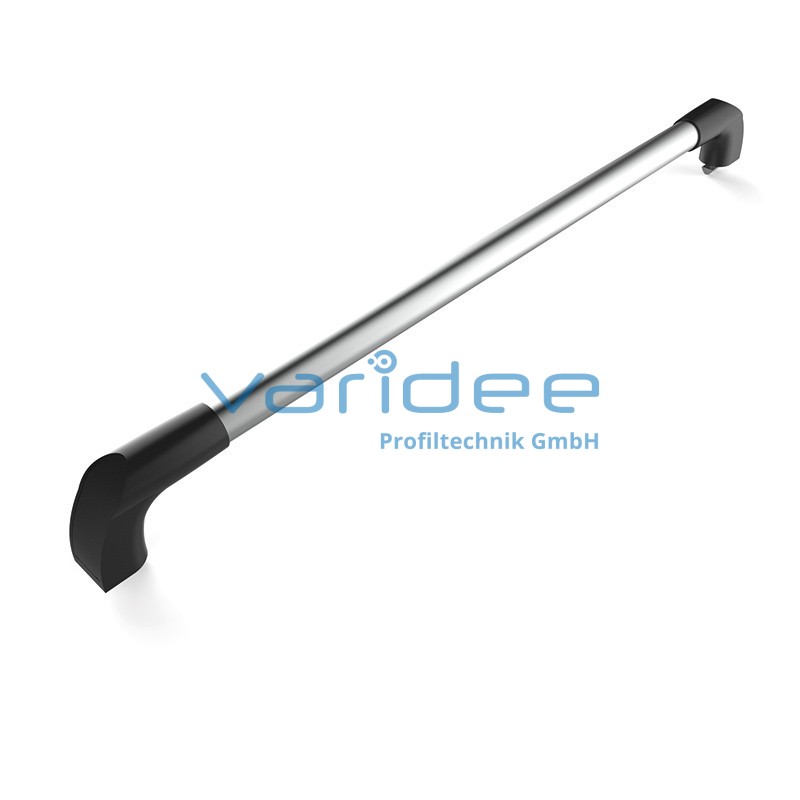

System handle 8 Al - 750
SYG-8-750
Hole spacing: 750.0 mm
Total length: 790.8 mm
Consists of:
2 End pieces for system handle
2 Caps for system handle
2 T-Slot nuts 8 St M8, galvanized
2 Button-head screws M8x20, galvanized
Handle bar Al, anodized, d = 30.0 mm (L = 620.0 mm)
m = 270.0 g
Total length: 790.8 mm
Consists of:
2 End pieces for system handle
2 Caps for system handle
2 T-Slot nuts 8 St M8, galvanized
2 Button-head screws M8x20, galvanized
Handle bar Al, anodized, d = 30.0 mm (L = 620.0 mm)
m = 270.0 g
The system handle 8 Al is a modular handle that can be individually adjusted in length. The anodized handle bar Al - D30 visually matches the established aluminum modular system. The handle can be screwed on from the front using T-slot nuts and screws as well as from the rear using an insert nut M8. Individual components or preassembled kits in various lengths can be ordered.
