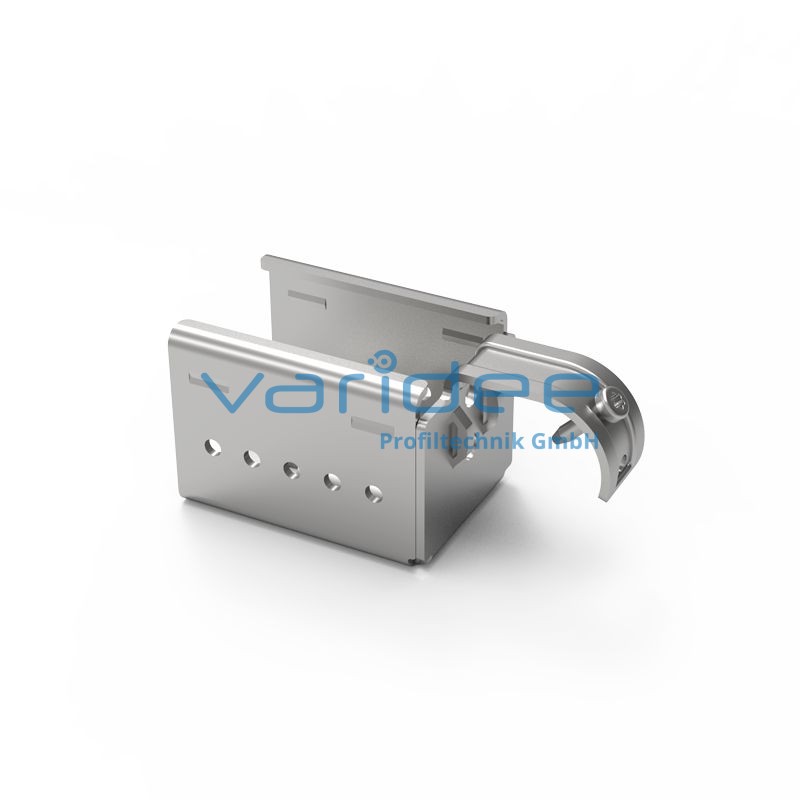

Roller Conveyor Al, Fastening Bracket I D30
RS8-AL-AN-D30-I
Consists of:
Castor conveyor Al fixture I D30, St, galvanized
Button-head screw self-drilling DIN 7504 3,9x16, St galvanized
Cap screw M5x14, St, galvanized
Washer M5, St, galvanized
T-slot nut 8 StM5, galvanized
m = 172.0 g
Castor conveyor Al fixture I D30, St, galvanized
Button-head screw self-drilling DIN 7504 3,9x16, St galvanized
Cap screw M5x14, St, galvanized
Washer M5, St, galvanized
T-slot nut 8 StM5, galvanized
m = 172.0 g
The roller conveyor Al, fastening bracket I D30 offers the possibility to attach castor conveyors at any angle to racks made of profile tubes D30. This variant additionally enables the assembly of bending roller conveyors with different gradients. At the bend the fastening bracket U D30 is inserted on the opposite side. The fastening bracket can be fixed and secured with included drilling screws. Furthermore, a fitting fastening set M5 is included to assemble the fastening bracket at the castor rails.
