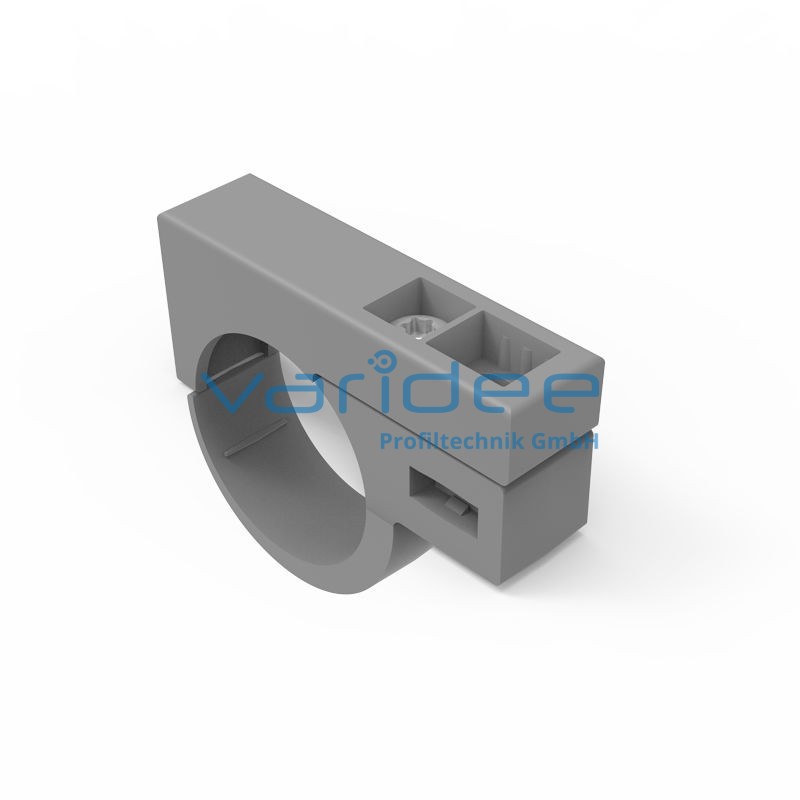

Panel Fastener D30, grey
FLB-D30
Consists of:
Base body, PA-GF, grey
Height compensation, PA-GF, grey
Button-head screw T4x12, St, galvanized
Square nut DIN 557, M5, St, galvanized
m = 19.5 g
Base body, PA-GF, grey
Height compensation, PA-GF, grey
Button-head screw T4x12, St, galvanized
Square nut DIN 557, M5, St, galvanized
m = 19.5 g
The panel fastener D30 is suitable to fit panels with low loads such as claddings or facings. The component can be used in combination with profile tubes D30 and tubes D30. By a height compensation, surfaces can be mounted in different positions. Mounting is possible both inside frames and placed on the outside. Base body and height compensation are screwed together by the button-head screw included in the scope of delivery. Thus, the tubes are firmly enclosed and surfaces can be mounted easily and safely.
