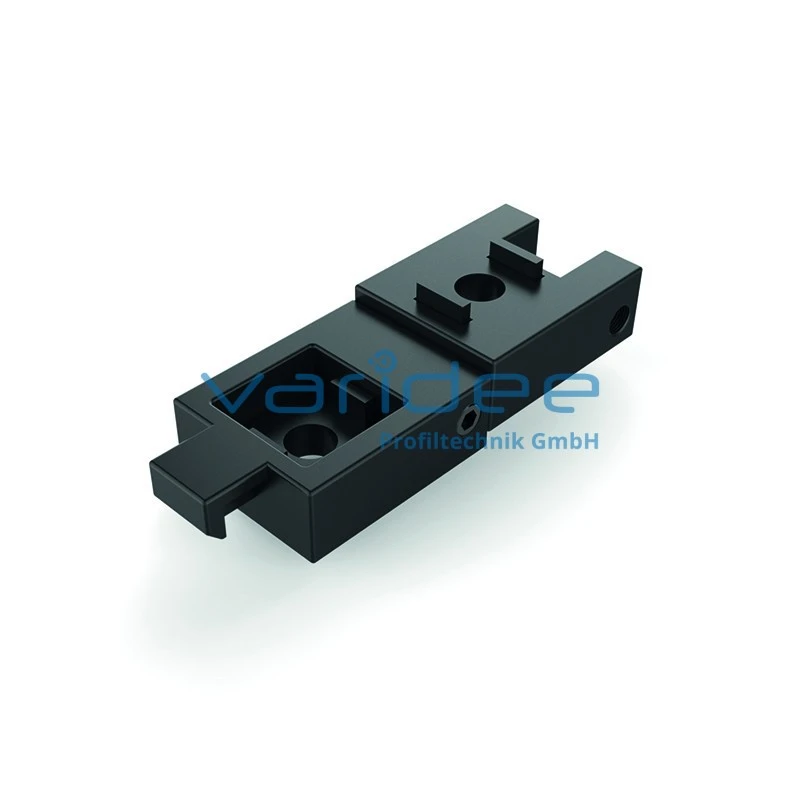

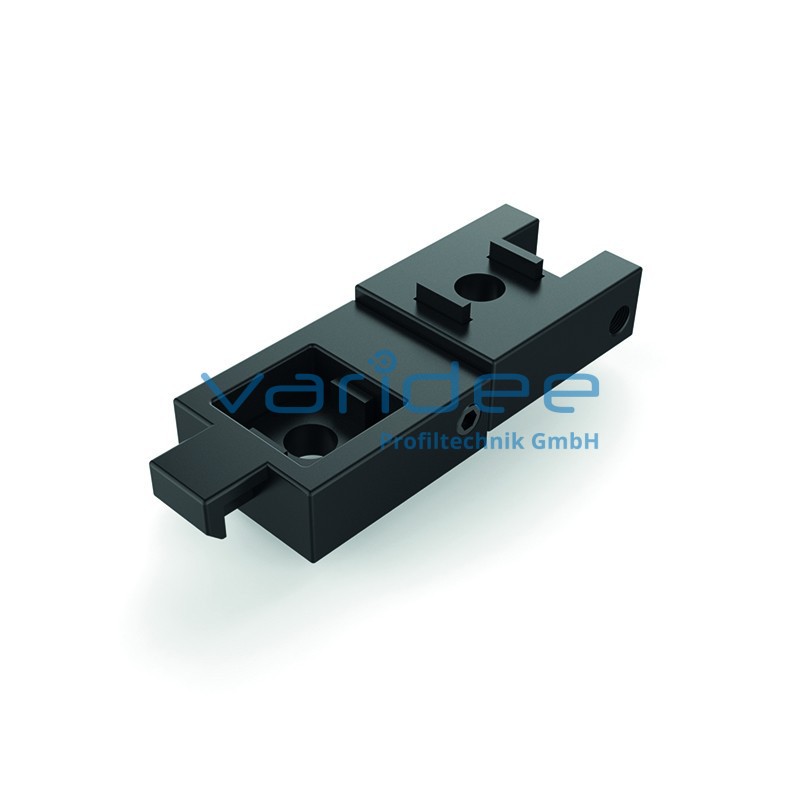

Hanger 6-8
AH6/8-SZ
Consists of:
2 Fixtures, GD-Zn, black
2 Anti-twist locks, GD-Zn, black
Threaded pins DIN 913-M5x10, black
Load: Fmax = 400 N
m = 68.0 g
2 Fixtures, GD-Zn, black
2 Anti-twist locks, GD-Zn, black
Threaded pins DIN 913-M5x10, black
Load: Fmax = 400 N
m = 68.0 g
The hanger 6-8 is used for fastening series 6 frame elements to series 8 stand profiles. If required the hangers can be connected to each other using the included threaded pin which secures them against being unhinged . The gap dimension between frame and stand profile amounts 25 mm.
