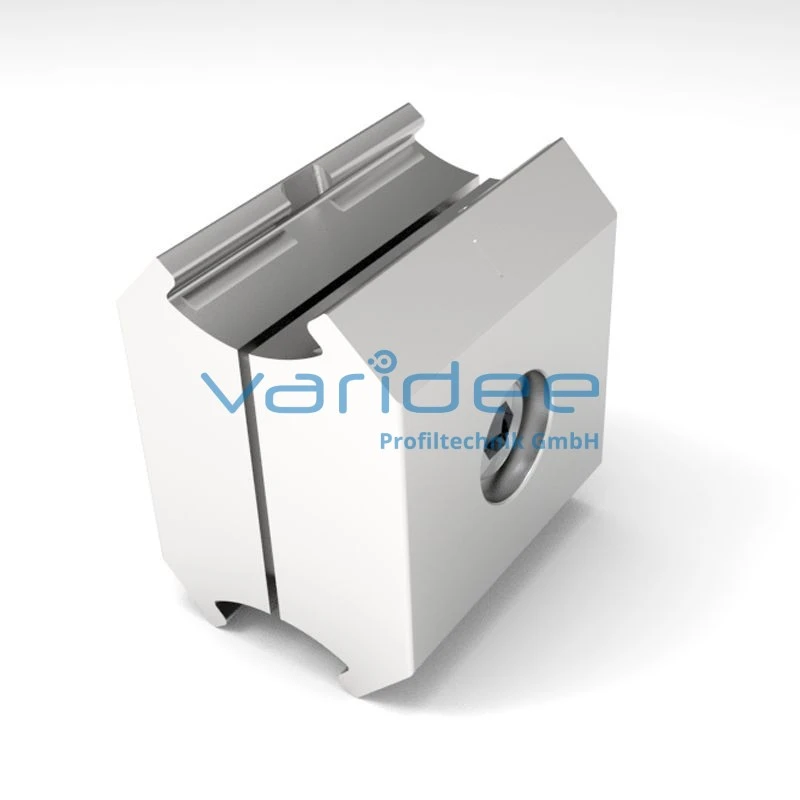

Parallel fastener D30-60 Al
PV-D30-60-AL
Consists of:
2 Connector halves, GD-Al, bright
Cap screw DIN 912, M6x20, St, galvanized
Hexagon nut DIN 985 (self-locking), St, galvanized
m = 74.0 g
The parallel fastener D30-60 Al is suitable for building rigid frame constructions made of profile tubes D30. Two profile tubes running at a distance of 30 mm can be connected in parallel and braced in parallel. The assembly-ready parallel fastener D30 is delivered as a set and contents the necessary mounting set. This makes the fastener immediately ready for service. The tightening torque of the fastening screws is M = 10 Nm. If required the screw points can be closed with additionally orderable Cap D30 flat, grey.
