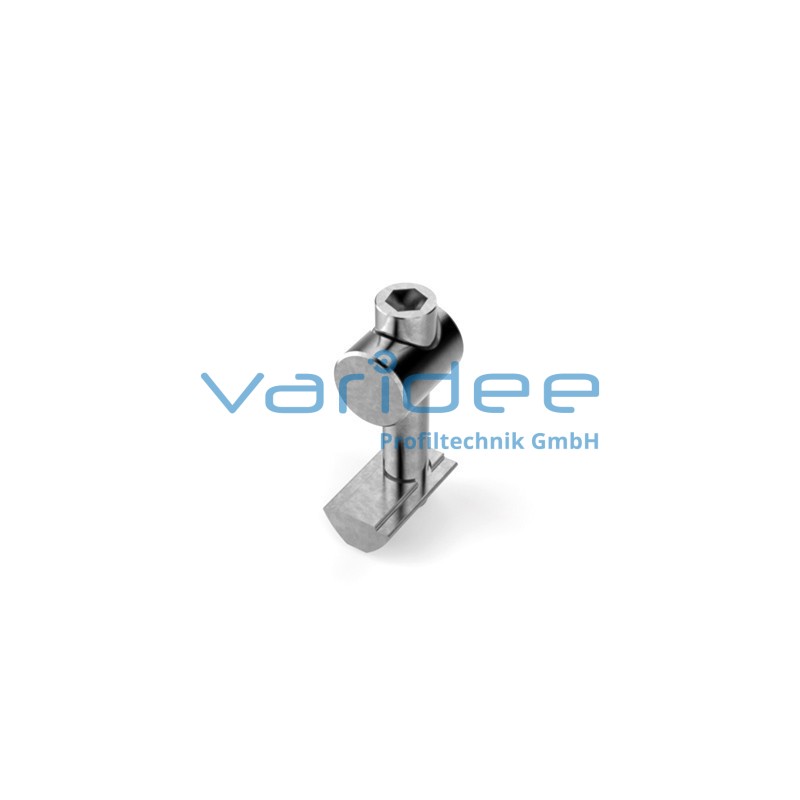

Bolt connector 8 18 set, galvanized
BV8-18-SZ
Consists of:
Bolt connector 18, St, galvanized
Cap screw M8x35, St, galvanized
T-slot nut 8 St M8 with guiding ridge, St, galvanized
M = 25 Nm
m = 38.5 g
Bolt connector 18, St, galvanized
Cap screw M8x35, St, galvanized
T-slot nut 8 St M8 with guiding ridge, St, galvanized
M = 25 Nm
m = 38.5 g
The bolt connector is a friction-locked, right-angled connection with the possibility of retrofitting or adjusting profile struts. It is particularly suitable for installing profiles in existing structures. The great advantage of this type of connector is its fatigue strength under dynamic loads. The bolt is made of galvanized steel and prevents loss of prestressing force. The bolt connector can be easily mounted by means of a drill machining D = 14.2 mm. An additionally orderable Step drill is offered. The hole-to-hole distance is 21.5 mm.
