Pneumatik-Anschlussplatte 8 80x40 - R 1/2", naturfarben eloxiert
  • Pneumatik-Anschlussplatte 8 80x40 - R 1/2", naturfarben eloxiert
  • Pneumatik-Anschlussplatte 8 80x40 - R 1/2", naturfarben eloxiert

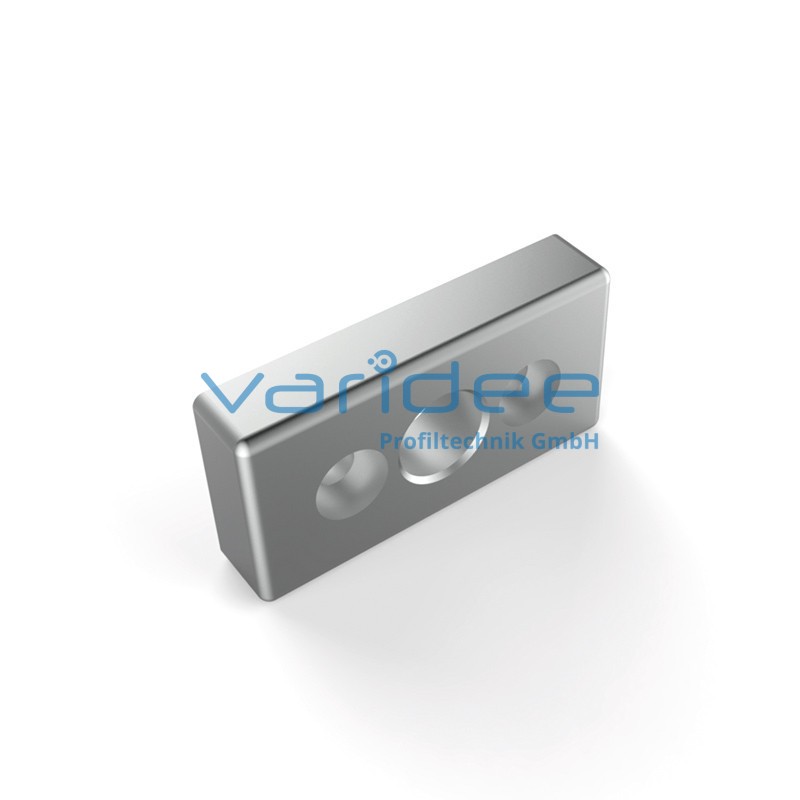

Pneumatic connecting plate 8 80x40 - R1/2", natural anodized

P-AP-80x40-R1/2
Material: Al
Surface: anodized
Color: natural color
m = 112.5 g

Pneumatic connecting plates 8 are used to seal the end-face profile cut surfaces. The base profile thus can serve as a compressed air supply system. The connecting plate is attached by means of screws M8x20 on the face side in the core drillings of the base profile. For sealing an additionally orderable pneumatic seal 8 PE can be used. Connection processing: M8x18 thread
