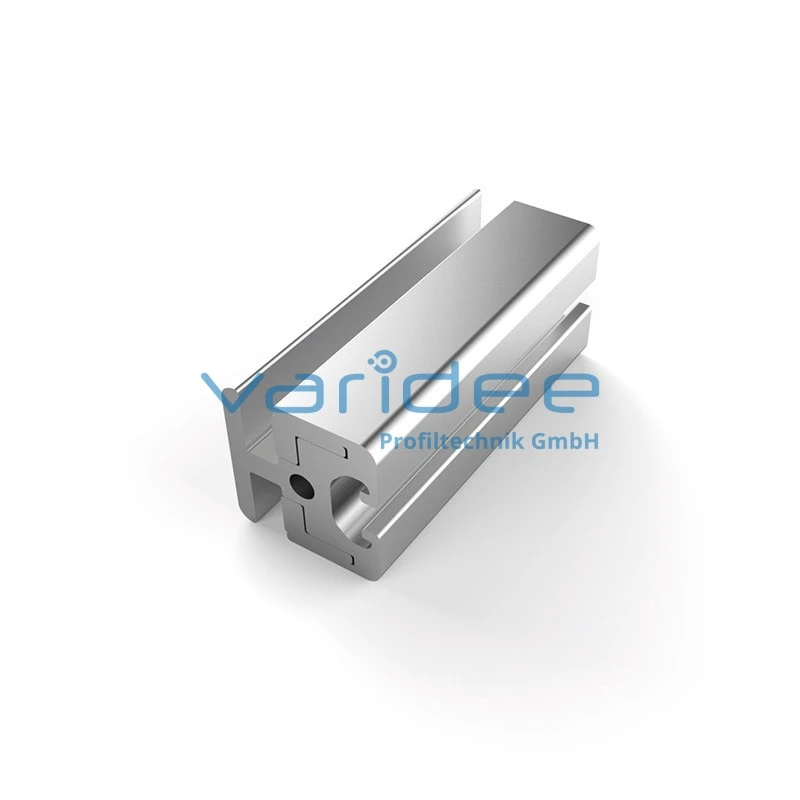

Clamp profile 8 40x40-180° (6 meters)
KP8-40x40-180-S6
Material: Aluminium, EN AW 6063 T66
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 2500 N
A = 8.38 cm2, Wx = 5.7 cm3, Wy = 6.2 cm3, Ix = 11.4 cm4, Iy = 13 cm4, It = 1.44 cm4
Length: 6000 mm
m = 3.20 kg/m
Surface: anodized, A6, C0
Color: natural color
max. tensile load groove flanks: 2500 N
A = 8.38 cm2, Wx = 5.7 cm3, Wy = 6.2 cm3, Ix = 11.4 cm4, Iy = 13 cm4, It = 1.44 cm4
Length: 6000 mm
m = 3.20 kg/m
Clamp profiles 8 40x40-180° are used for the construction and subdivision of large, stable protection systems. The surface elements are clamped by using cylinder screws and profile terminal strips. The stability of the frame element is supported when the surface element is clamped in tightly. Clamp depth: 15 mm (circumferential)
A special feature of this variant is the two-sided clamping option for panel elements. The scope of delivery includes the required profile strips 8 19x11.5 and the suitable screws.
A special feature of this variant is the two-sided clamping option for panel elements. The scope of delivery includes the required profile strips 8 19x11.5 and the suitable screws.
