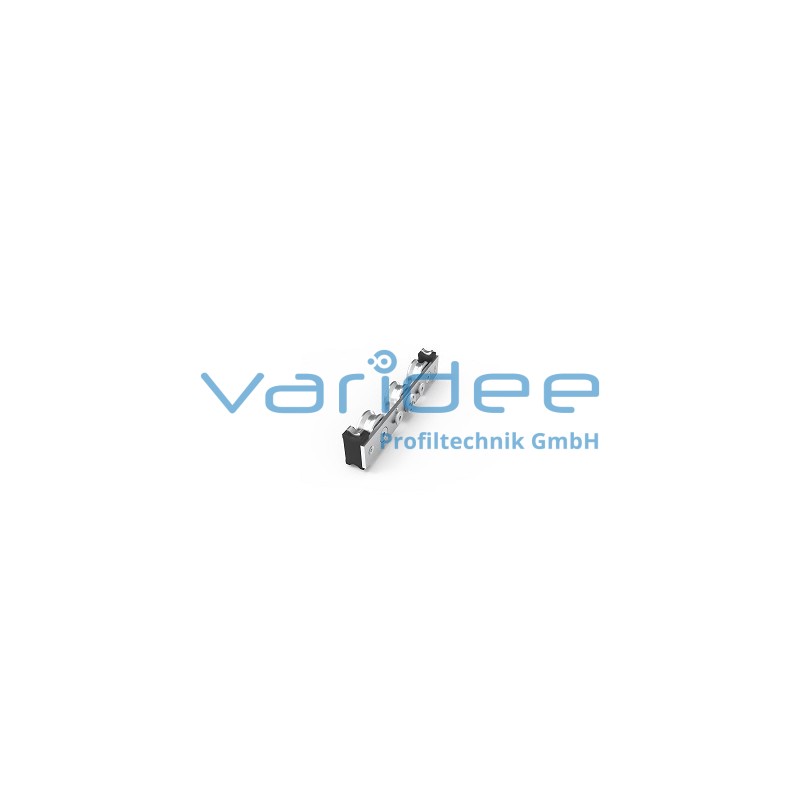

C-Rail, Bearing Set 8 D14 3R
CS-LS-8D14-3R
Consists of:
C-rail, slide plate, St, galvanized
2 Rollers D14, St, bright (centric)
Roller D14, St, bright (eccentric)
2 C-rail, wiper and lubrication systems 8 D14
2 Countersunk screws M8x16, St, galvanized
Load: Fmax = 1500 N (tension)
Fmax = 750 N (pressure)
m = 596.0 g
C-rail, slide plate, St, galvanized
2 Rollers D14, St, bright (centric)
Roller D14, St, bright (eccentric)
2 C-rail, wiper and lubrication systems 8 D14
2 Countersunk screws M8x16, St, galvanized
Load: Fmax = 1500 N (tension)
Fmax = 750 N (pressure)
m = 596.0 g
The C-rail, bearing set 8 D14 3R is used as a bearing set for self-assembly of C-rail, bearing units. To attach the bearing sets to the C-rail, slide profile 8, countersunk holes for the fixing screws must be drilled 64.0 mm apart, as well as a through-hole of d = 22.5 mm for the four-hole nut. The position of the holes is marked by a scribed line in the slide profile. In general, C-rail systems are variable and safe track roller guides and are designed in particular for the assembly of lifting and sliding doors. The pre-assembled track rollers are durable and maintenance-free. The C-rail, bearing set 8 D14 3R can be subjected to a maximum tensile load of Fmax = 1,500 N and pressure load of Fmax = 750 N. With the 3R variant, the bearing set can also be adjusted backlash-free using an eccentric.
